3412 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERMINAL,SOLIS SPD 16-14 10

Part	Mounting Type	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Terminal Type	Termination	Insulation	Features	Contact Finish	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Contact Material	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall	Length - Overall	Width - Outer Edges [custom]	Width - Outer Edges [custom]

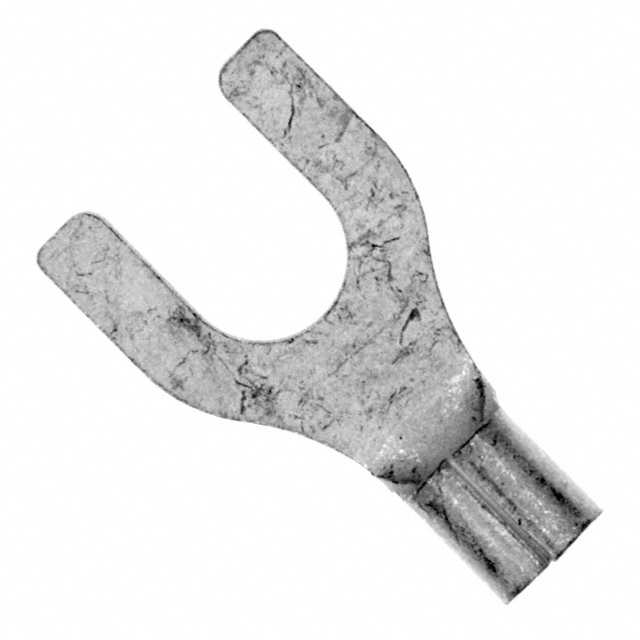

TE Connectivity Raychem Cable Protection 34129	Free Hanging (In-Line)	10 Stud	0.385 in	9.78 mm	Standard	Crimp	Non-Insulated	Brazed Seam Serrated Termination	Tin	5 mm	0.197 in	7.92 mm	0.312 in	Copper	0.181 in	4.6 mm
TE Connectivity Raychem Cable Protection 34122	Free Hanging (In-Line)				Circular	Crimp	Non-Insulated	Brazed Seam Serrated Termination	Tin					Copper			0.343 in	8.71 mm	8 Stud	0.636 in	16.15 mm	0.031 in	0.79 mm
TE Connectivity Raychem Cable Protection 34121	Free Hanging (In-Line)	6 Stud			Circular	Crimp	Non-Insulated	Brazed Seam Serrated Termination	Tin					Copper			0.343 in	8.71 mm		0.636 in	16.15 mm	0.031 in	0.79 mm

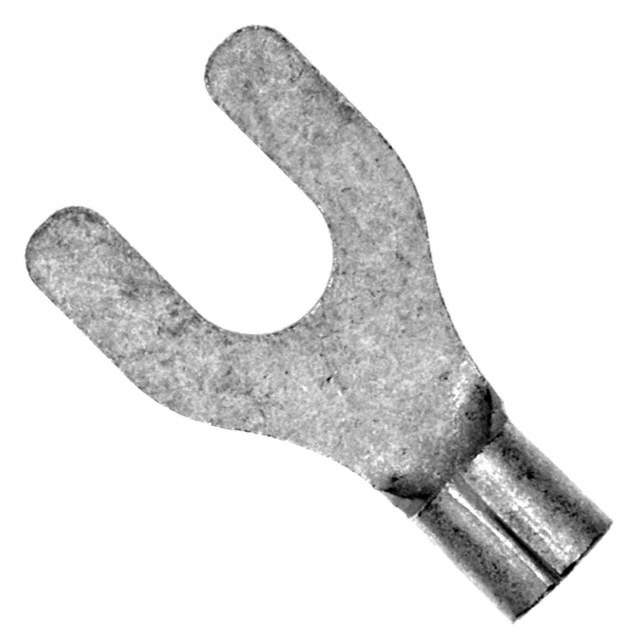

TE Connectivity Raychem Cable Protection 34128	Free Hanging (In-Line)		0.385 in	9.78 mm	Standard	Crimp	Non-Insulated	Brazed Seam Serrated Termination	Tin	4.34 mm	0.171 in	7.92 mm	0.312 in	Copper	0.181 in	4.6 mm			8 Stud

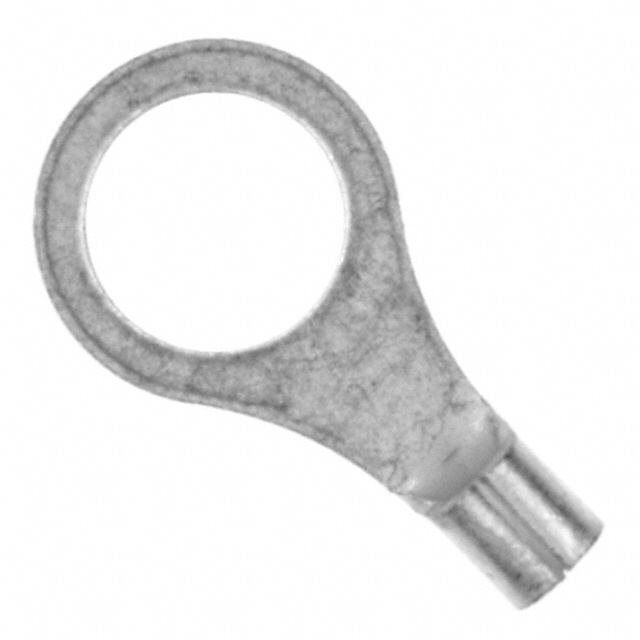

TE Connectivity Raychem Cable Protection 34125	Free Hanging (In-Line)	0.3125 Stud			Circular	Crimp	Non-Insulated	Brazed Seam Serrated Termination	Tin					Copper								0.031 in	0.79 mm	11.91 mm	0.469 in	0.855 in	21.72 mm

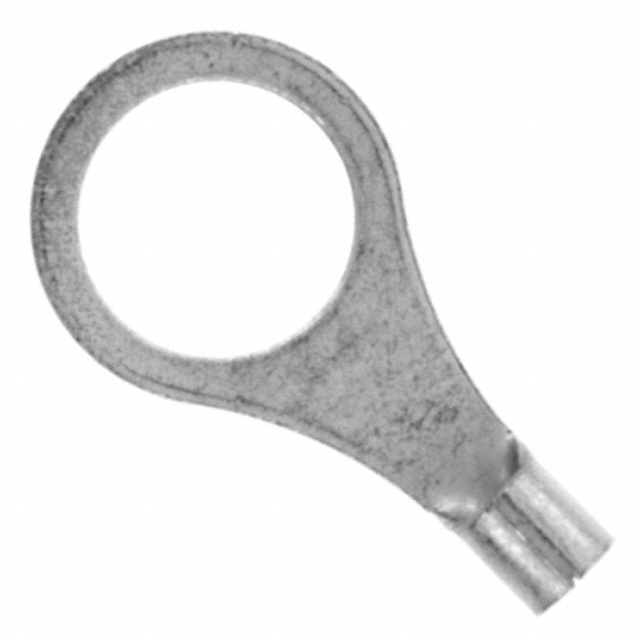

TE Connectivity Raychem Cable Protection 34126	Free Hanging (In-Line)				Circular	Crimp	Non-Insulated	Brazed Seam Serrated Termination	Tin					Copper					3/8 Stud	0.995 in	25.27 mm	0.031 in	0.79 mm					13.49 mm	0.531 "
TE Connectivity Raychem Cable Protection 34123	Free Hanging (In-Line)	10 Stud			Circular	Crimp	Non-Insulated	Brazed Seam Serrated Termination	Tin					Copper			0.343 in	8.71 mm		0.636 in	16.15 mm	0.031 in	0.79 mm
