AWH 24A Series

Catalog

CONN HEADER R/A 24POS 2.54MM

Part	Material Flammability Rating	Number of Positions	Contact Finish Thickness - Mating	Shrouding	Connector Type	Style	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Shape	Fastening Type	Contact Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Rows [custom]	Features	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Material	Current Rating (Amps)	Insulation Material	Insulation Height [z]

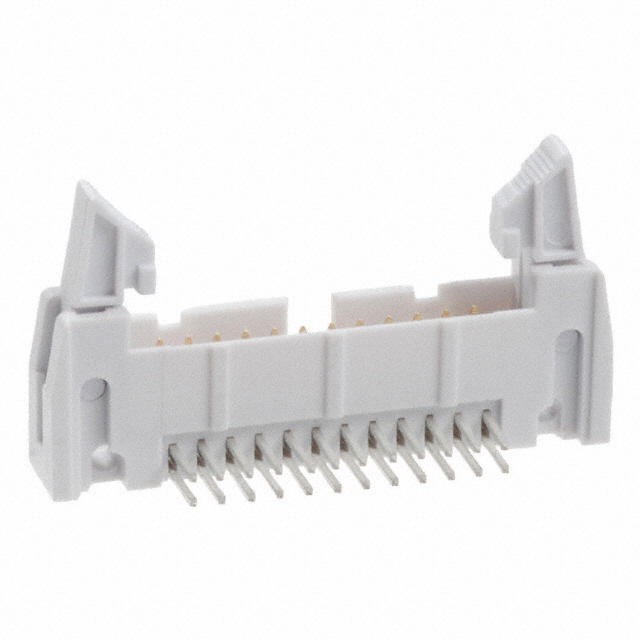

Assmann WSW Components AWH24A-0222-T-R	UL94 V-0	24	Flash	Shrouded - 4 Wall	Header	Board to Cable/Wire	Gray	Gold	All	-40 C	105 ░C	3.81 mm	0.15 in	17 mm	0.669 in	Square	Latch Lock/Eject Hooks	Male Pin	Right Angle Through Hole	0.1 in	2.54 mm	Solder	2	Keying Slot	Tin	0.1 "	2.54 mm	Brass	3 A	Polybutylene Terephthalate (PBT) Glass Filled
Assmann WSW Components AWH 24A-0222-T	UL94 V-0	24	Flash	Shrouded - 4 Wall	Header	Board to Cable/Wire	Gray	Gold	All	-40 C	105 ░C	3.81 mm	0.15 in	8.3 mm		Square	Latch Lock/Eject Hooks	Male Pin	Right Angle Through Hole	0.1 in	2.54 mm	Solder	2	Keying Slot	Tin	0.1 "	2.54 mm	Brass	3 A	Polybutylene Terephthalate (PBT) Glass Filled	0.327 "

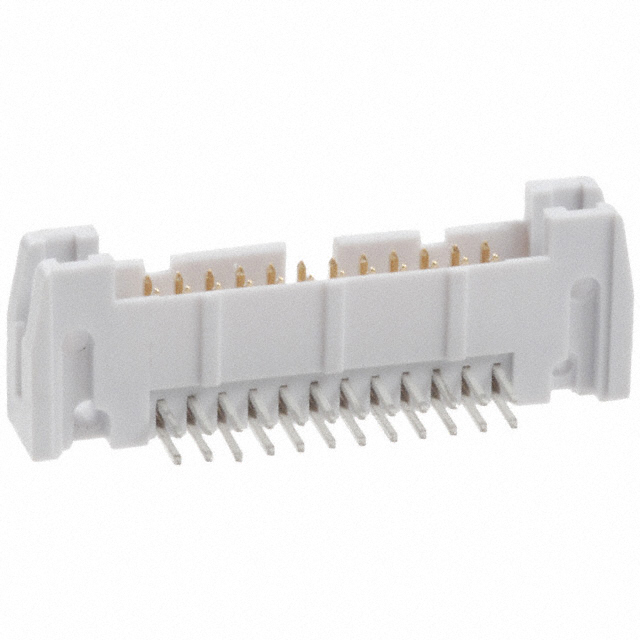

Assmann WSW Components AWH24A-0202-T-R	UL94 V-0	24	Flash	Shrouded - 4 Wall	Header	Board to Cable/Wire	Gray	Gold	All	-40 C	105 ░C	3.81 mm	0.15 in	17 mm	0.669 in	Square	Push-Pull	Male Pin	Right Angle Through Hole	0.1 in	2.54 mm	Solder	2	Keying Slot	Tin	0.1 "	2.54 mm	Brass	3 A	Polybutylene Terephthalate (PBT) Glass Filled

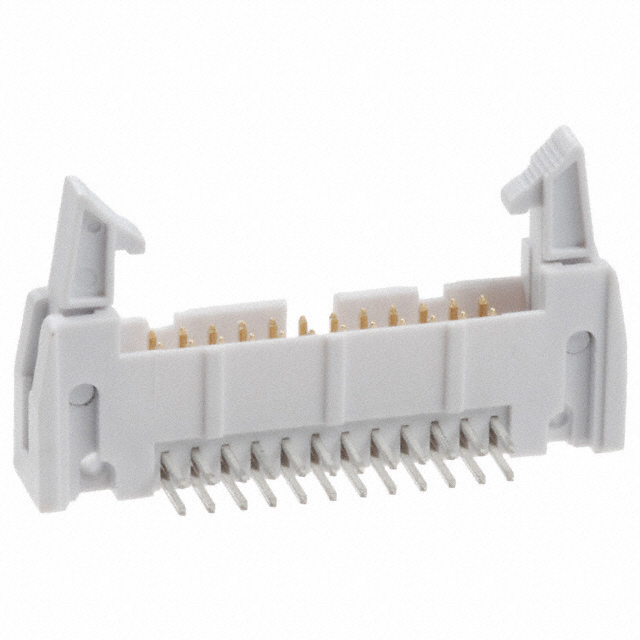

Assmann WSW Components AWH24A-0232-T-R	UL94 V-0	24	Flash	Shrouded - 4 Wall	Header	Board to Cable/Wire	Gray	Gold	All	-40 C	105 ░C	3.81 mm	0.15 in	17 mm	0.669 in	Square	Latch Lock/Eject Hooks Long	Male Pin	Right Angle Through Hole	0.1 in	2.54 mm	Solder	2	Keying Slot	Tin	0.1 "	2.54 mm	Brass	3 A	Polybutylene Terephthalate (PBT) Glass Filled
