GKAAT0-H Series
Manufacturer: ODU
Beta
⌘K

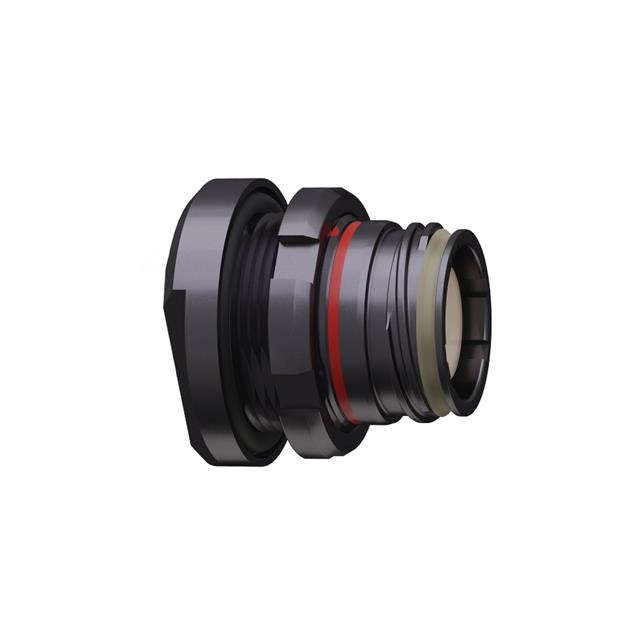

ODU AMC SERIES T RECEPTACLE, SHE
| Part | Orientation | Shell Size - Insert [custom] | Material Flammability Rating | Voltage Rating | Shell Material | Number of Positions | Mounting Type | Ingress Protection | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Connector Type | Shielding | Mounting Feature | Contact Material | Insert Material | Contact Finish - Mating | Color | Primary Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | 12 | UL94 V-0 | 50 V | Aluminum | 18 | Panel Mount | IP68 IP69K | Push-Pull Threaded | -65 ░C | 175 °C | 50 µin | 1.27 µm | Tin Nickel | Receptacle Female Sockets | Shielded | Bulkhead - Front Side Nut | Copper Alloy | Polyetheretherketone (PEEK) | Gold | Silver | Metal | 5 A 7.5 A |
