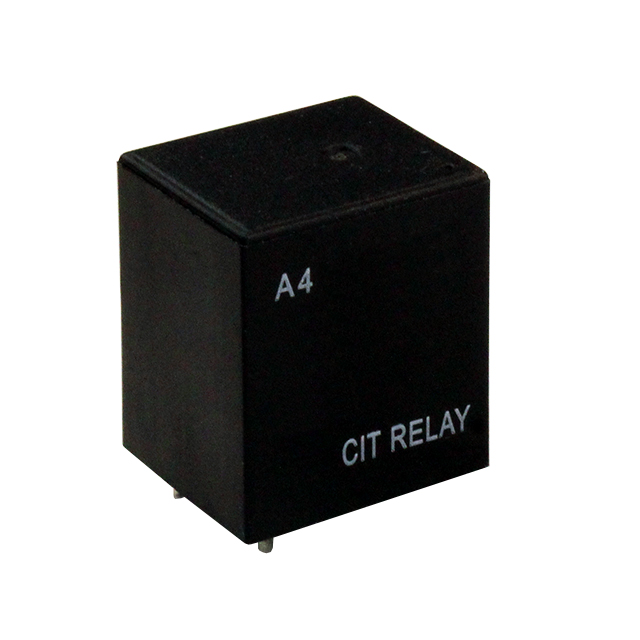

A41CS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 20A 24V
| Part | Contact Material | Coil Resistance | Mounting Type | Must Operate Voltage | Coil Type | Must Release Voltage | Release Time | Features | Operate Time | Contact Form | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Switching Voltage [Max] | Contact Rating (Current) | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 576 Ohms | Through Hole | 16.8 VDC | Non Latching | 2.4 VDC | 5 ms | Sealed - Fully | 15 ms | SPDT (1 Form C) | 24 VDC | 85 °C | -40 C | PC Pin | 75 VDC 380 VAC | 20 A | 41.7 mA |
