EFC6604R Series

Dual N-Channel Power MOSFET for 1-Cell Lithium-ion Battery Protection, 12V, 13A, 9.0mΩ

Catalog

Dual N-Channel Power MOSFET for 1-Cell Lithium-ion Battery Protection, 12V, 13A, 9.0mΩ

Part	Configuration	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature	FET Feature	FET Feature	Mounting Type	Supplier Device Package	Power - Max [Max]	Technology

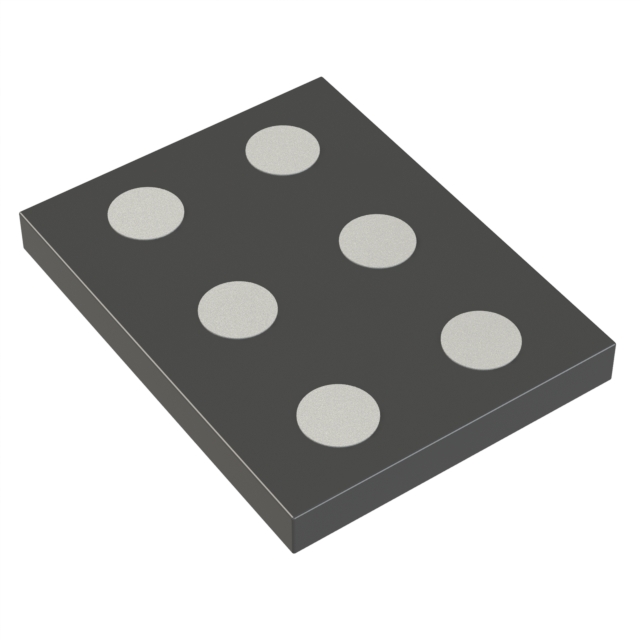

ON Semiconductor EFC6604R-TR	2 N-Channel (Dual)	6-SMD No Lead	29 nC	150 °C	Logic Level Gate	2.5 V	Surface Mount	6-EFCP (1.9x1.46)	1.6 W	MOSFET (Metal Oxide)
ON Semiconductor EFC6604R-A-TR		6-SMD No Lead		150 °C			Surface Mount	6-EFCP (1.9x1.46)

Catalog

Dual N-Channel Power MOSFET for 1-Cell Lithium-ion Battery Protection, 12V, 13A, 9.0mΩ

Key Features

• 2.5V drive

• Common-drain type

• ESD Diode-Protected Gate

• RoHS compliance

• 2kV ESD HBM

Description

This Power MOSFET features a low on-state resistance. This device is suitable for applications such as power switches of portable machines. Best suited for 1-cell lithium-ion battery applications.
