MA16DP Series

Catalog

INTERLOCK MAGNETIC 3PST

Part	Voltage Rating	Type	Approval Agency	Current Rating (Amps)	Termination Style	Circuit	Ingress Protection	Actuator Type	Must Operate [Min]	Must Operate [Max]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Must Release [Max]	Must Release [Min]

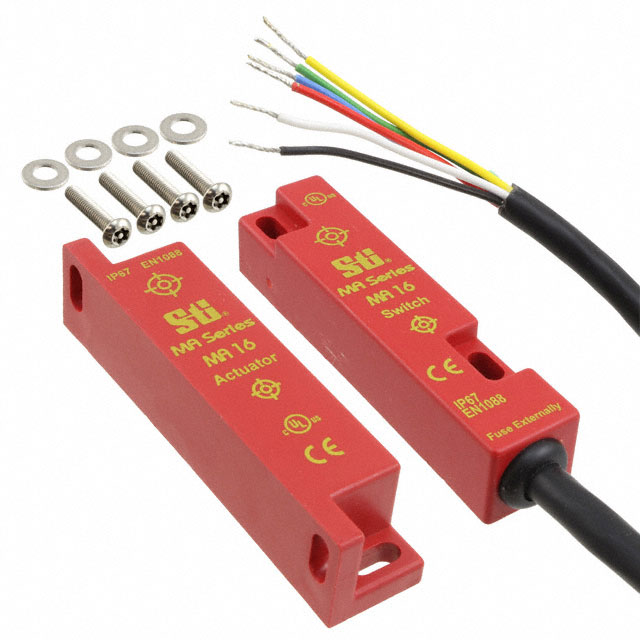

Omron Electronics Inc-EMC Div MA16DP21C3	30 VDC	Magnetic	CE cULus	1 A	Cable Leads	3PST-2NC/1NO	IP67 - Dust Tight Waterproof	Non-Contact	7 mm	12 mm	55 °C	-10 °C	25 mm	12 mm

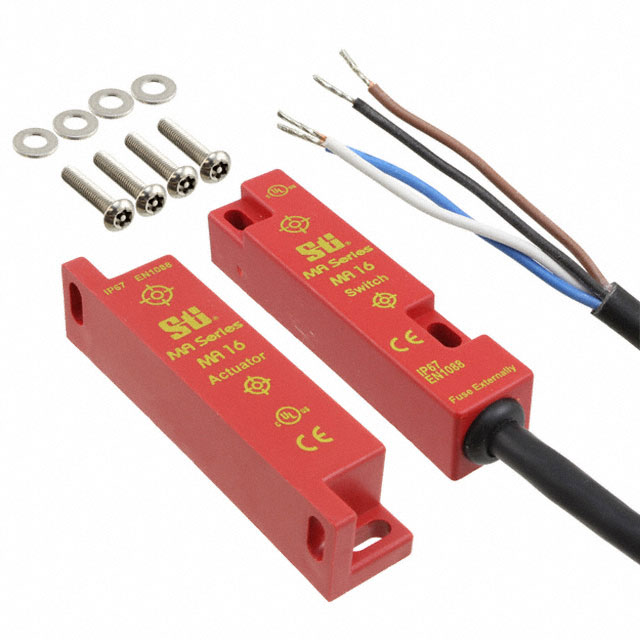

Omron Electronics Inc-EMC Div MA16DP20C3	30 VDC	Magnetic	CE cULus	1 A	Cable Leads	DPST-NC	IP67 - Dust Tight Waterproof	Non-Contact	7 mm	12 mm	55 °C	-10 °C	25 mm	12 mm

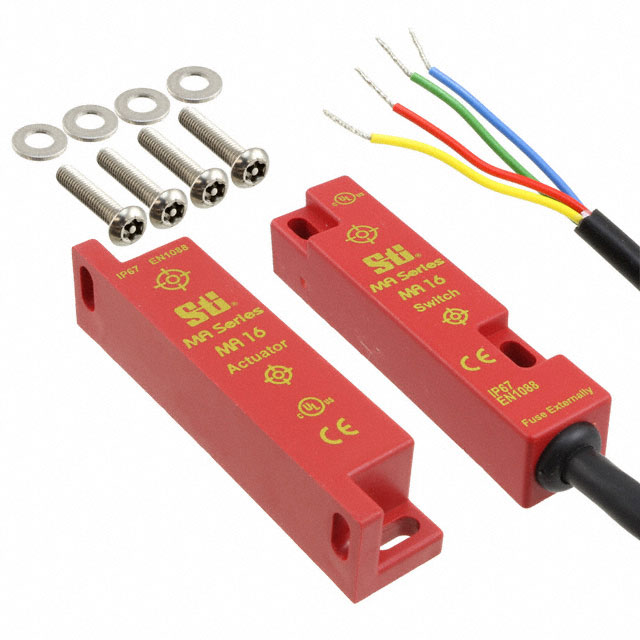

Omron Electronics Inc-EMC Div MA16DP11C6	30 VDC	Magnetic	CE cULus	1 A	Cable Leads	DPST-NO/NC	IP67 - Dust Tight Waterproof	Non-Contact	7 mm	12 mm	55 °C	-10 °C	25 mm	12 mm
Omron Electronics Inc-EMC Div MA16DP21C6	30 VDC	Magnetic	CE cULus	1 A	Cable Leads	3PST-2NC/1NO	IP67 - Dust Tight Waterproof	Non-Contact	7 mm	12 mm	55 °C	-10 °C	25 mm	12 mm
Omron Electronics Inc-EMC Div MA16DP11C3	30 VDC	Magnetic	CE cULus	1 A	Cable Leads	DPST-NO/NC	IP67 - Dust Tight Waterproof	Non-Contact	7 mm	12 mm	55 °C	-10 °C	25 mm	12 mm
