2238209 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

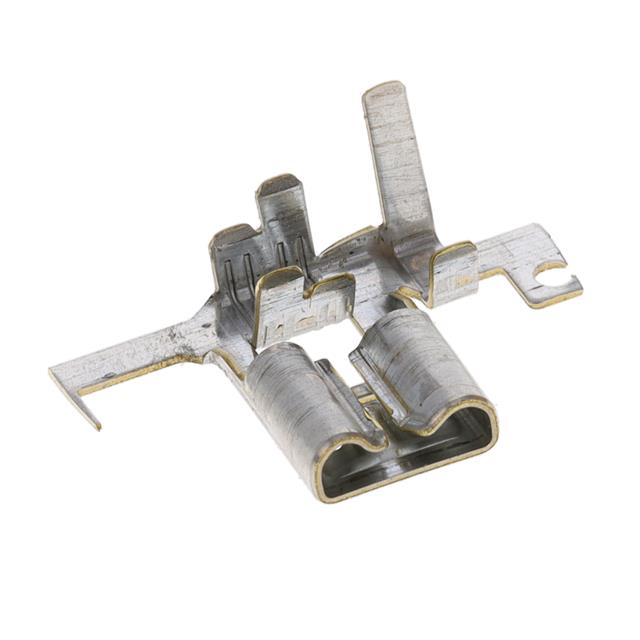

FASTON 250 STD REC LHFLG 2DCR 22
| Part | Terminal Type | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Gender | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Tab Thickness | Tab Thickness | Insulation | Contact Material | Termination | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) Right Angle | 12 AWG | 22 AWG | Tin | Female | 1.88 mm | 0.157 in | 3.99 mm | 0.074 " | 0.032 in | 0.81 mm | Non-Insulated | Brass | Crimp Flag | 6.35 mm | 0.25 in |
