333-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

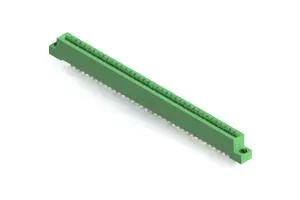

CONN EDGE SGL FMALE 37POS 0.156
| Part | Material - Insulation | Termination Rows | Color | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Contact Finish | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Contact Material | Contact Type | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Gender | Number of Rows | Pitch | Pitch | Read Out | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Through Hole | Gold | Wire Wrap | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge |
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | Through Hole | Gold | Wire Wrap | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Gold | Solder | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Gold | Wire Wrap | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | Through Hole | Gold | Solder | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | Through Hole | Gold | Solder | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Through Hole | Gold | Solder | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge |
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | Through Hole | Gold | Solder | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Right Angle Through Hole | Gold | Wire Wrap | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 0.25 Ám | 10 Áin | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Through Hole | Gold | Solder Eyelet(s) | -40 C | 105 ░C | 37 | Copper Alloy | Cantilever | 37 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 1 | 3.96 mm | 0.156 in | Single | Non Specified - Single Edge |
