2834334 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

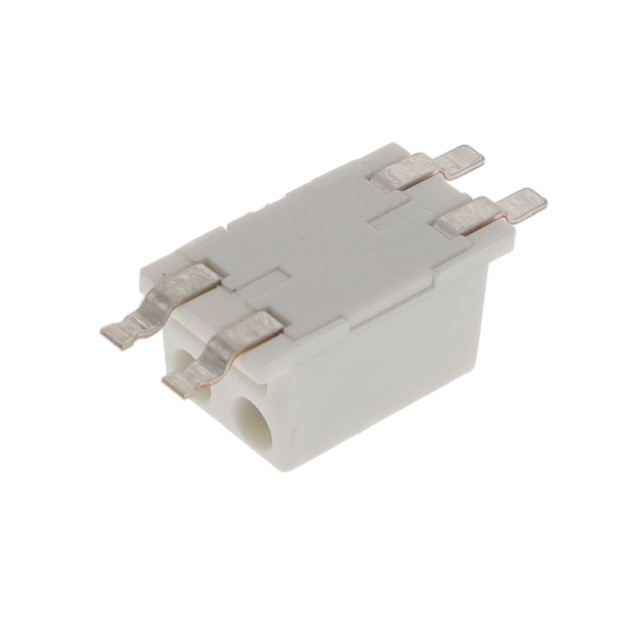

4.0PITCH W/CAP ITB_2P_WHITE
| Part | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Style | Voltage Rating | Current Rating (Amps) | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Housing Color | Contact Material | Pitch [x] | Pitch [x] | Termination | Number of Positions | Connector Type | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | -40 °C | 105 ░C | Board to Cable/Wire | 320 V | 6 A | Board Cutout Surface Mount | 24 AWG | 17.5 AWG | White | Copper Alloy | 4 mm | 0.157 in | Solder | 2 | Poke-In Wire Receptacle | Thermoplastic |

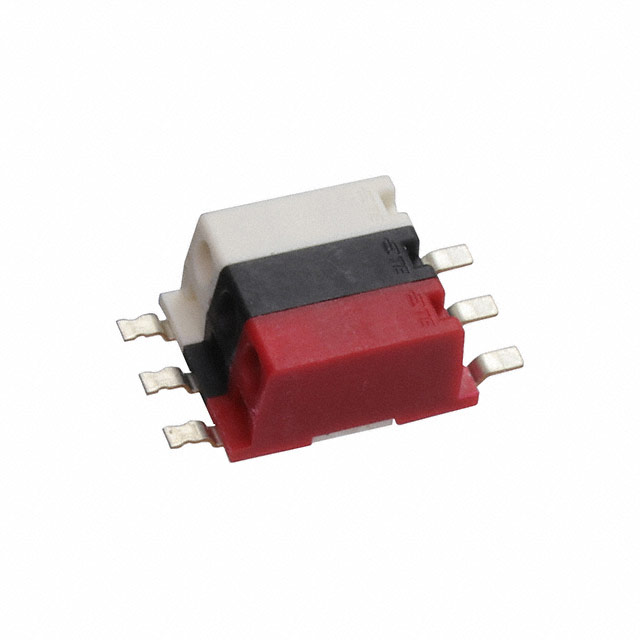

 TE Connectivity Raychem Cable Protection | Tin | -40 °C | 105 ░C | Board to Cable/Wire | 320 V | 6 A | Board Cutout Surface Mount | 24 AWG | 17.5 AWG | Black Red White | Copper Alloy | 4 mm | 0.157 in | Solder | Poke-In Wire Receptacle | Thermoplastic |
