345-055 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 55 CONTACTS, PANEL MOUNT, STRAIGHT

...

Part	Number of Positions/Bay/Row [custom]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Material - Insulation	Card Type	Color	Termination Rows	Contact Finish	Number of Rows	Contact Type	Read Out	Termination	Flange Feature	Flange Feature	Features
EDAC Inc. 345-055-500-604	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Solder Eyelet(s)

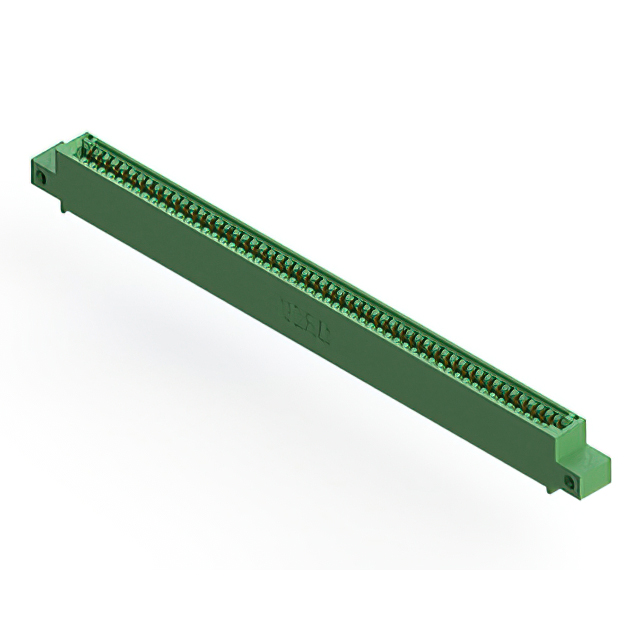

EDAC Inc. 345-055-521-412	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions		Side Mount Opening Unthreaded		Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Solder	3.25 mm	0.128 in
EDAC Inc. 345-055-541-407	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions		M3 Threaded Insert Top Mount Opening		Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Wire Wrap
EDAC Inc. 345-055-524-402	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions				Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Solder	3.25 mm	0.128 in

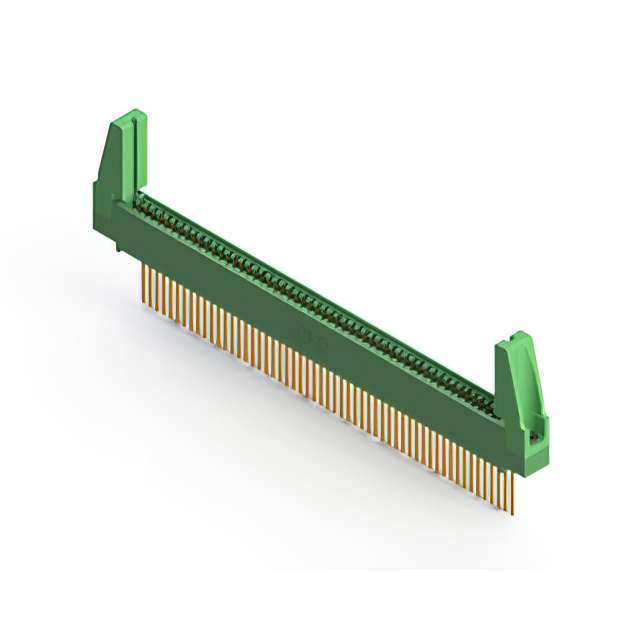

EDAC Inc. 345-055-544-488	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions		4-40 Threaded Insert Top Mount Opening		Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Wire Wrap			Card Guides
EDAC Inc. 345-055-540-412	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions		Side Mount Opening Unthreaded		Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Wire Wrap	3.25 mm	0.128 in
EDAC Inc. 345-055-521-103	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Solder
EDAC Inc. 345-055-540-604	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Wire Wrap

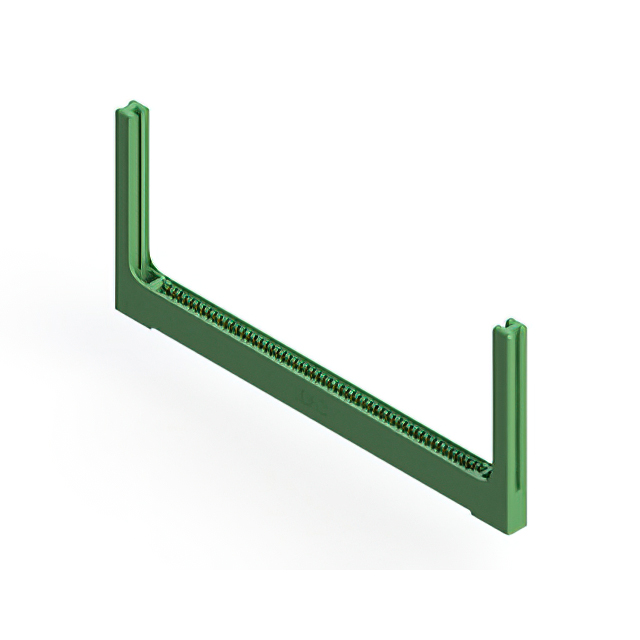

EDAC Inc. 345-055-521-158	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Solder			Card Guides
EDAC Inc. 345-055-525-178	55	Copper Alloy	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	55 positions		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	Female	-40 °C	105 ░C	2.54 mm	0.1 in	Polyester Thermoplastic	Non Specified - Single Edge	Green	1	Gold	1	Cantilever	Single	Solder			Card Guides
