PPCEGG Series

Catalog

CIRCULAR CONNECTOR, PUSH PULL X SERIES, PANEL MOUNT RECEPTACLE, 22 CONTACTS, SOLDER SOCKET

Part	Orientation [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Connector Type	Contact Material	Shell Finish	Fastening Type	Ingress Protection	Shell Material	Current Rating (Amps)	Mounting Type	Shielding	Contact Finish - Mating	Primary Material	Mounting Feature

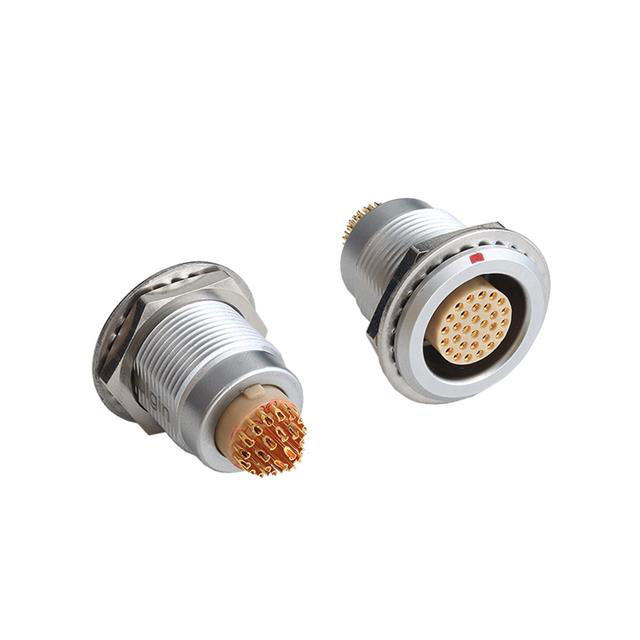

BULGIN LIMITED PPCEGG3B22CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	22	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP50 - Dust Protected	Brass	5.5 Amps	Panel Mount	Shielded	Gold	Metal
BULGIN LIMITED PPCEGG3K20CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	20	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP66 - Dust Tight Water Resistant	Brass	6 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG3K12CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	12	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP66 - Dust Tight Water Resistant	Brass	9 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG1B08CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	8	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP50 - Dust Protected	Brass	5 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut

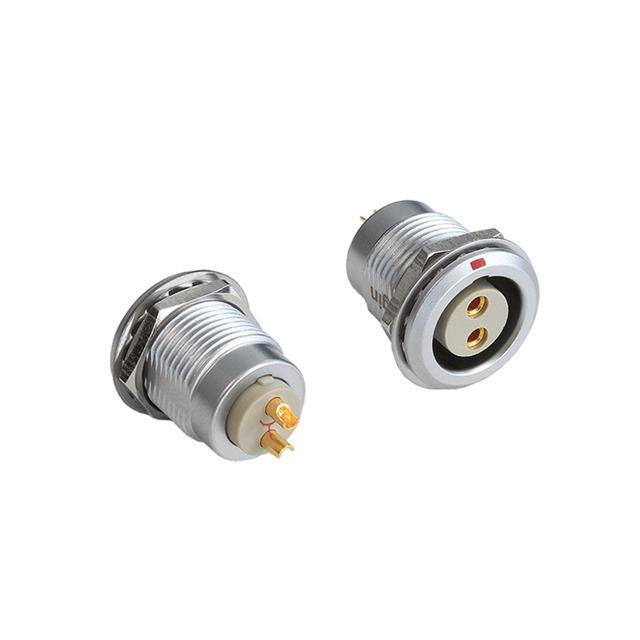

BULGIN LIMITED PPCEGG2B03CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)		0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP50 - Dust Protected	Brass	17 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG1K07CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	7	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP66 - Dust Tight Water Resistant	Brass	7 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG2K14CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	14	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP66 - Dust Tight Water Resistant	Brass	6.5 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG2B07CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	7	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP50 - Dust Protected	Brass	11 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG1K14CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	14	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP66 - Dust Tight Water Resistant	Brass	2 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut
BULGIN LIMITED PPCEGG2B08CLL	G	200 °C	-50 °C	Polyphenylene Sulfide (PPS)	8	0.076 µm	3 µin	Silver	Receptacle Female Sockets	Phosphor Bronze	Chrome	Push-Pull	IP50 - Dust Protected	Brass	10 A	Panel Mount	Shielded	Gold	Metal	Bulkhead - Rear Side Nut
