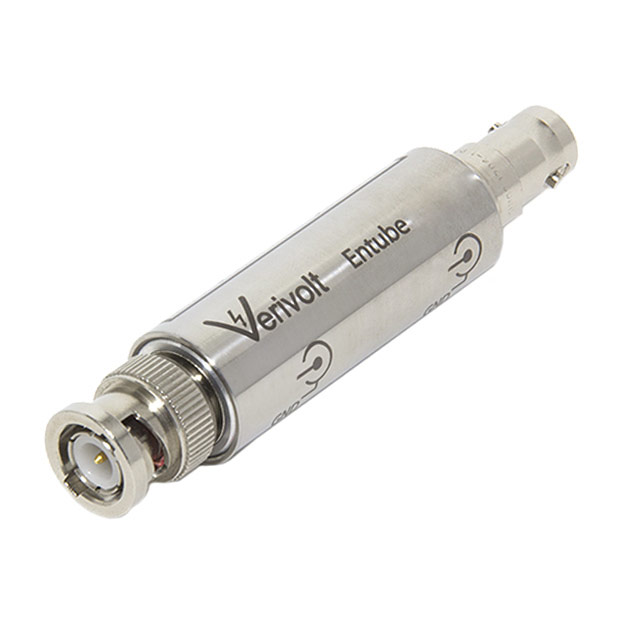

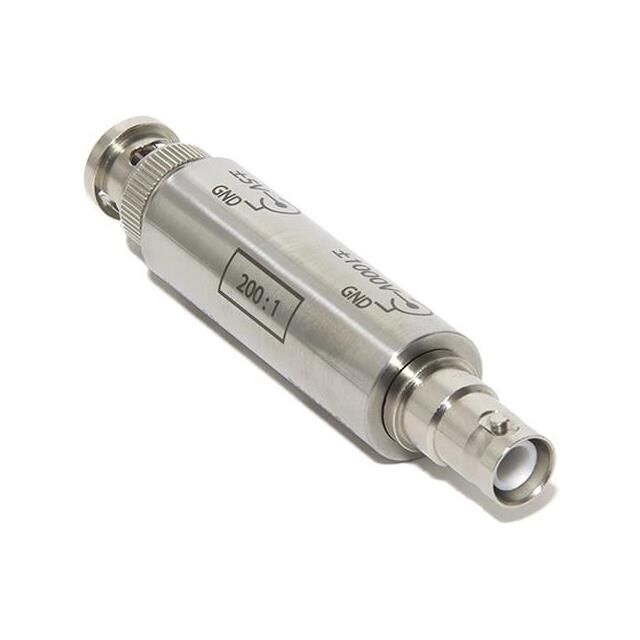

ENTUBE Z Series

Catalog

TRANSDUCER VOLTAGE DIVIDER

Part	Response Time	Accuracy	Input Voltage (Min)	Input Voltage (Max)	Termination Style	Type	Operating Temperature (Max)	Operating Temperature (Min)	Output Current (Max)	Output Current (Min)
Verivolt LLC ENTUBE Z (1000V 200MV)	8 ns	0.2 %	-1000 V	1000 V	BNC SHV	Voltage Transducer	70 °C	-25 °C	200 mV	-200 mV
Verivolt LLC ENTUBE Z (2000V 1V)	8 ns	0.2 %	-2000 V	2000 V	BNC SHV	Voltage Transducer	70 °C	-25 °C	1 V	-1 V
Verivolt LLC ENTUBE Z (50V 200MV)	8 ns	0.2 %	-50 V	50 V	BNC	Voltage Transducer	70 °C	-25 °C	200 mV	-200 mV
Verivolt LLC ENTUBE Z (3000V 1V)	8 ns	0.2 %	-3000 V	3000 V	BNC SHV	Voltage Transducer	70 °C	-25 °C	1 V	-1 V
Verivolt LLC ENTUBE Z (500V 1V)	8 ns	0.2 %	-500 V	500 V	BNC	Voltage Transducer	70 °C	-25 °C	1 V	-1 V
Verivolt LLC ENTUBE Z (750V 200MV)	8 ns	0.2 %	-750 V	750 V	BNC SHV	Voltage Transducer	70 °C	-25 °C	200 mV	-200 mV
Verivolt LLC ENTUBE Z (5000V 200MV)	8 ns	0.2 %	-5000 V	5000 V	BNC SHV	Voltage Transducer	70 °C	-25 °C	200 mV	-200 mV
Verivolt LLC ENTUBE Z (300V 200MV)	8 ns	0.2 %	-300 V	300 V	BNC	Voltage Transducer	70 °C	-25 °C	200 mV	-200 mV
Verivolt LLC ENTUBE Z (2000V 200MV)	8 ns	0.2 %	-2000 V	2000 V	BNC SHV	Voltage Transducer	70 °C	-25 °C	200 mV	-200 mV
Verivolt LLC ENTUBE Z (2000V 2V)	8 ns	0.2 %	-2000 V	2000 V	BNC SHV	Voltage Transducer	70 °C	-25 °C	2 V	-2 V
