SDES064T Series

Catalog

FIXED IND 3.3UH 5.1A 24MOHM SMD

Part	DC Resistance (DCR)	Package / Case	Current - Saturation (Isat)	Shielding	Current Rating (Amps)	Inductance Frequency - Test	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec SDES064T-3R3MS	24 mOhm	Nonstandard	5 A	Shielded	5.1 A	100 kHz	20 %	0.236 "	6 mm	0.236 in	6 mm	3.3 µH	Surface Mount	-55 C	125 °C	4 mm	0.157 in
Delta Electronics/Cyntec SDES064T-100MS		Nonstandard	3.1 A	Shielded	3.4 A	100 kHz	20 %	0.236 "	6 mm	0.236 in	6 mm	10 µH	Surface Mount	-55 C	125 °C	4 mm	0.157 in	49 mOhm

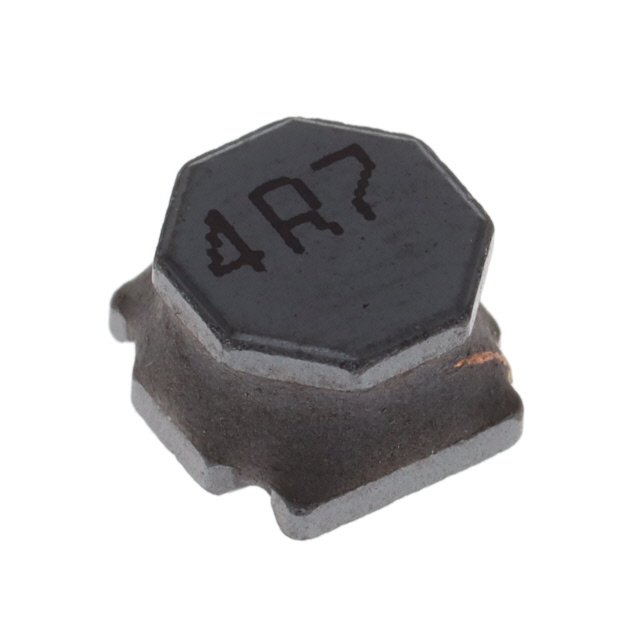

Delta Electronics/Cyntec SDES064T-4R7MS		Nonstandard	4.5 A	Shielded	4.75 A	100 kHz	20 %	0.236 "	6 mm	0.236 in	6 mm	4.7 ÁH	Surface Mount	-55 C	125 °C	4 mm	0.157 in	26 mOhm
Delta Electronics/Cyntec SDES064T-221MS	1.04 Ohm	Nonstandard	640 mA	Shielded	0.64 A	100 kHz	20 %	0.236 "	6 mm	0.236 in	6 mm	220 µH	Surface Mount	-55 C	125 °C	4 mm	0.157 in
Delta Electronics/Cyntec SDES064T-6R8MS	39 mOhm	Nonstandard	3.7 A	Shielded	4.2 A	100 kHz	20 %	0.236 "	6 mm	0.236 in	6 mm	6.8 µH	Surface Mount	-55 C	125 °C	4 mm	0.157 in
Delta Electronics/Cyntec SDES064T-2R2MS		Nonstandard	6.4 A	Shielded	6.3 A	100 kHz	20 %	0.236 "	6 mm	0.236 in	6 mm	2.2 µH	Surface Mount	-55 C	125 °C	4 mm	0.157 in	17 mOhm
Delta Electronics/Cyntec SDES064T-101MS	530 mOhm	Nonstandard	950 mA	Shielded	1.05 A	100 kHz	20 %	0.236 "	6 mm	0.236 in	6 mm	100 µH	Surface Mount	-55 C	125 °C	4 mm	0.157 in
Delta Electronics/Cyntec SDES064T-680MS		Nonstandard	1.1 A	Shielded	1.2 A	100 kHz	20 %	0.236 "	6 mm	0.236 in	6 mm	68 µH	Surface Mount	-55 C	125 °C	4 mm	0.157 in	360 mOhm
