R11600 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

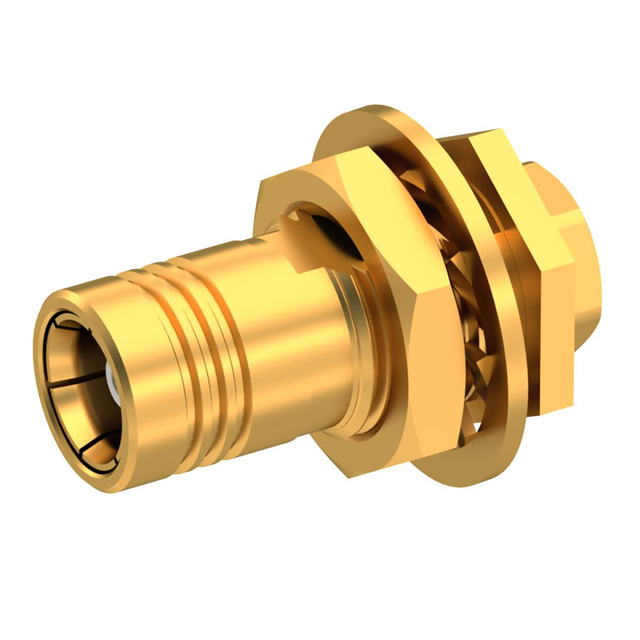

SMB / STRAIGHT PLUG BULKHEAD REA
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Body Material | Dielectric Material | Frequency - Max [Max] | Number of Ports | Cable Group | Cable Group | Mounting Type | Impedance | Shield Termination | Housing Color | Connector Type | Contact Termination | Mounting Feature | Connector Style | Fastening Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Gold | 500 | Brass | Polytetrafluoroethylene (PTFE) | 4 GHz | 1 | 196 | RG-178 | Panel Mount | 50 Ohms | Clamp | Gold | Female Socket Plug | Solder | Bulkhead - Front Side Nut | SMB | Snap-On | Beryllium Copper |
