170814 Series

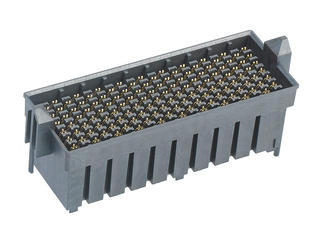

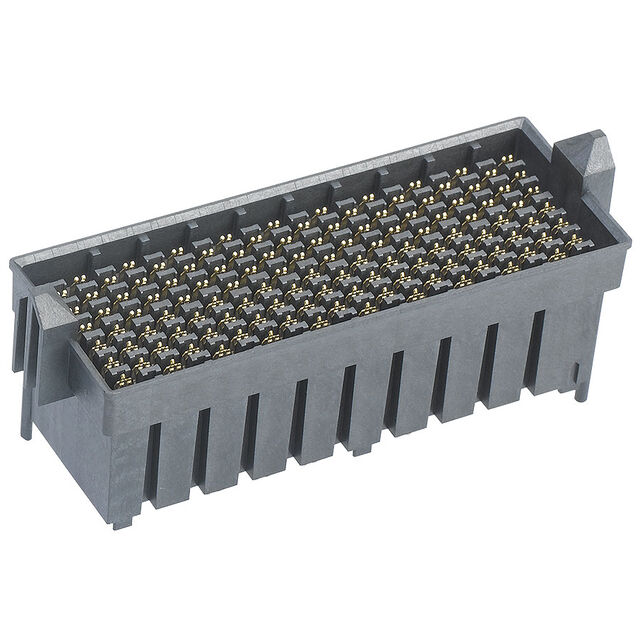

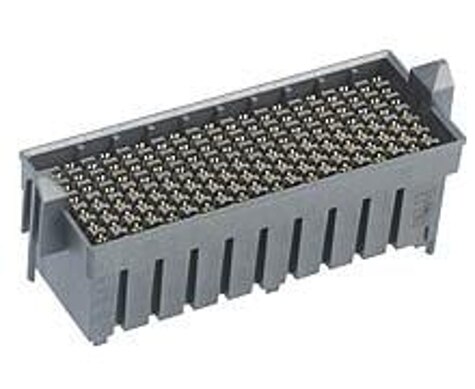

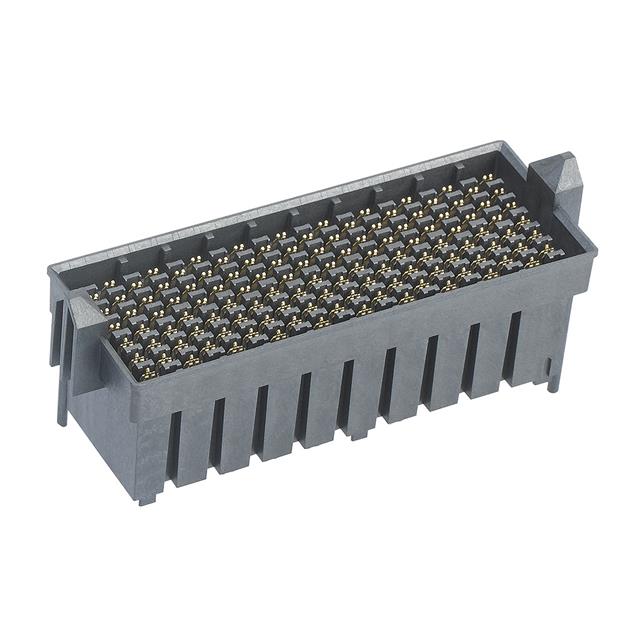

NeoScale High-Speed Mezzanine Receptacle, 2.80mm Pitch, 4x18, 72 Triads-85 Ohm (216 Circuits), 8.00mm Connector Height

Manufacturer: Molex

Catalog

NeoScale High-Speed Mezzanine Receptacle, 2.80mm Pitch, 4x18, 72 Triads-85 Ohm (216 Circuits), 8.00mm Connector Height

Part	Contact Finish	Mated Stacking Heights	Connector Type	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board	Height Above Board
Molex 1708140033	Gold	18 mm	Array Female Sockets	6	360	0.11 in	2.8 mm	0.862 in	21.89 mm	Surface Mount	0.76 Ám	30 Áin	Board Guide Pick and Place
Molex 1708142008	Gold		Array Female Sockets	6	72					Surface Mount	0.76 Ám	30 Áin	Board Guide
Molex 1708140037
Molex 1708143006	Gold	8 mm	Array Female Sockets		216	0.11 in	2.8 mm	0.439 in	11.14 mm	Surface Mount	0.76 Ám	30 Áin	Board Guide Pick and Place
Molex 1708142006	Gold		Array Female Sockets	8	176	0.11 in	2.8 mm	0.862 in	21.89 mm	Solder	0.76 Ám	30 Áin	Board Guide Pick and Place
Molex 1708142009	Gold		Array Female Sockets	6	120					Surface Mount	0.76 Ám	30 Áin	Board Guide
Molex 1708140039
Molex 1708142030	Gold	8 mm	Array Female Sockets		216	0.11 in	2.8 mm			Surface Mount	0.76 Ám	30 Áin	Board Guide Pick and Place	11.89 mm	0.468 in
Molex 1708142024	Gold	8 mm	Array Female Sockets		216	0.11 in	2.8 mm	0.439 in	11.14 mm	Surface Mount	0.76 Ám	30 Áin	Board Guide Pick and Place
Molex 1708143005	Gold	8 mm	Array Female Sockets		216	0.11 in	2.8 mm	0.439 in	11.14 mm	Surface Mount	0.76 Ám	30 Áin	Board Guide Pick and Place

NeoScale High-Speed Mezzanine Receptacle, 2.80mm Pitch, 4x18, 72 Triads-85 Ohm (216 Circuits), 8.00mm Connector Height
