EB2061 Series

Catalog

PUSHBUTTON SWITCHES MINIATURE PUSHBUTTON BUSHING MOUNT

Part	Mechanical Life	Electrical Life	Color - Actuator/Cap	Features	Current Rating (Amps)	Termination Style	Mounting Type	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Type	Circuit	Type	Switch Function	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches EB2061-CG	100000 Cycles	25000 Steps	Blue	Epoxy Sealed Terminals	3 A	Solder Lug	Panel Mount Rear	No Marking	70 °C	-10 °C	0.25 in	125 V	Button Round	DPDT	Standard	On-Mom

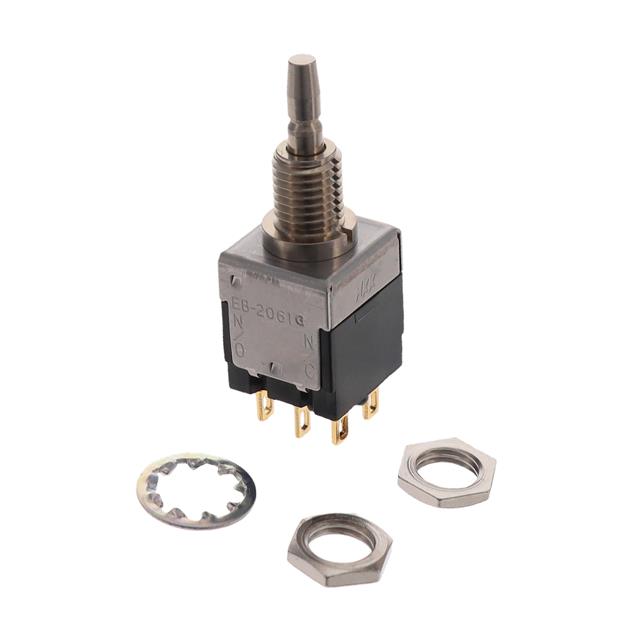

NKK Switches EB2061G	100000 Cycles	50000 Cycles		Epoxy Sealed Terminals	0.4 VA	Solder Lug	Panel Mount Rear	No Marking	70 °C	-10 °C	0.25 in	28 V	Plunger for Cap	DPDT	Standard	On-Mom	28 V
NKK Switches EB2061-A-J21A	100000 Cycles	25000 Steps	Black	Epoxy Sealed Terminals	3 A	Solder Lug	Panel Mount Snap-In	No Marking	70 °C	-10 °C		125 V	Button Square	DPDT	Standard	On-Mom		15 mm	12.5 mm
NKK Switches EB2061G-A-J20	100000 Cycles	50000 Cycles	Black	Epoxy Sealed Terminals	0.4 VA	Solder Lug	Panel Mount Snap-In	No Marking	70 °C	-10 °C		28 V	Button Square	DPDT	Standard	On-Mom	28 V	15 mm	12.5 mm
NKK Switches EB2061G-A-J21A	100000 Cycles	50000 Cycles	Black	Epoxy Sealed Terminals	0.4 VA	Solder Lug	Panel Mount Snap-In	No Marking	70 °C	-10 °C		28 V	Button Square	DPDT	Standard	On-Mom	28 V	15 mm	12.5 mm
NKK Switches EB2061-A-J41A	100000 Cycles	25000 Steps	Black	Epoxy Sealed Terminals	3 A	Solder Lug	Panel Mount Snap-In	No Marking	70 °C	-10 °C		125 V	Button Square	DPDT	Standard	On-Mom		15 mm	12.5 mm
NKK Switches EB2061-B-J22AC	100000 Cycles	25000 Steps	White	Epoxy Sealed Terminals	3 A	Solder Lug	Panel Mount Snap-In	No Marking	70 °C	-10 °C		125 V	Button Square	DPDT	Illuminated Standard	On-Mom		15 mm	12.5 mm	LED Red	2.8 VDC

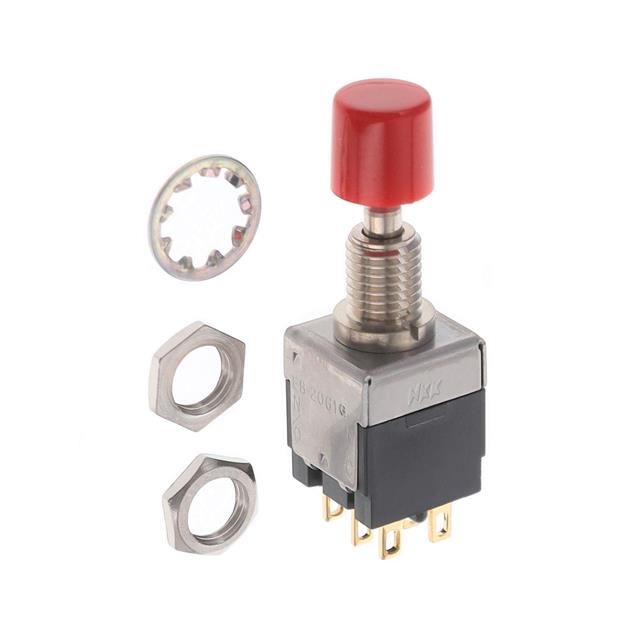

NKK Switches EB2061G-BC	100000 Cycles	50000 Cycles	Red	Epoxy Sealed Terminals	0.4 VA	Solder Lug	Panel Mount Rear	No Marking	70 °C	-10 °C	0.25 in	28 V	Button Round	DPDT	Standard	On-Mom	28 V
NKK Switches EB2061-B-J23ACF	100000 Cycles	25000 Steps	White	Epoxy Sealed Terminals	3 A	Solder Lug	Panel Mount Snap-In	No Marking	70 °C	-10 °C		125 V	Button Square	DPDT	Illuminated Standard	On-Mom		18.4 mm	15 mm	Green/Red LED	2 VDC 2.25 VDC
NKK Switches EB2061-E-J43AEF	100000 Cycles	25000 Steps	Yellow	Epoxy Sealed Terminals	3 A	Solder Lug	Panel Mount Snap-In	No Marking	70 °C	-10 °C		125 V	Button Square	DPDT	Illuminated Standard	On-Mom		18.4 mm	15 mm	Green/Yellow LED	2.1 VDC 2.25 VDC
