IFMC Series

Catalog

PLUGGABLE TERMINAL BLOCKS IFMC 1,5/8-ST-3,5-RN

Part	Material Flammability Rating	Housing Material	Wire Strip Length	Pitch	Pitch	Voltage - IEC	Termination Style	Positions Per Level	Color	Number of Positions	Current - IEC	Voltage - UL	Mounting Type	Plug Wire Entry	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Mating Finish	Features	Current - UL	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]

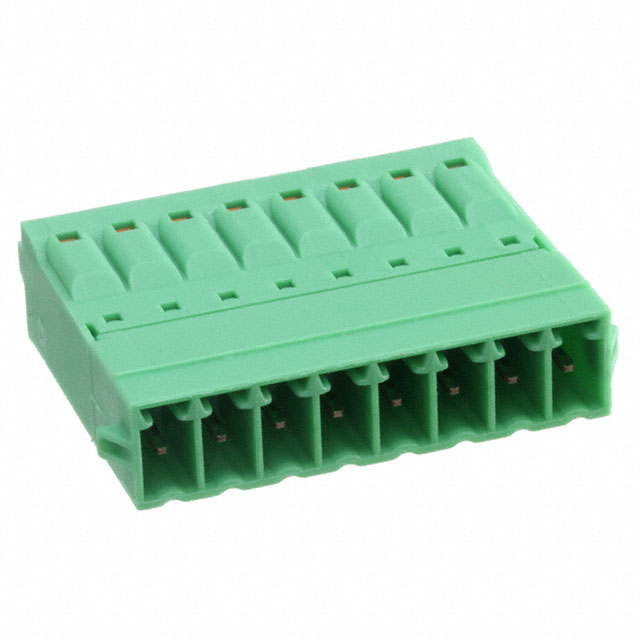

Phoenix Contact 1844167	UL94 V-0	Polyamide (PA) Nylon	10 mm	3.5 mm	0.138 "	320 V	Push-In Spring Screwless - Leg Spring	8	Green	8	8 A	150 V	Free Hanging (In-Line)	180 °	16 AWG	24 AWG	1.5 mm²	0.14 mm²	Tin	Locking Ramp	8 A	1

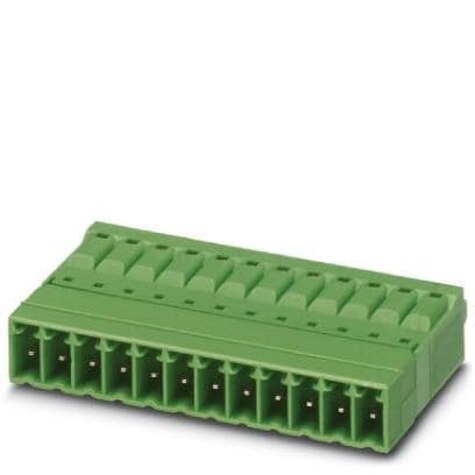

Phoenix Contact 1844170				3.5 mm	0.138 "	320 V	Push-In Spring Screwless - Leg Spring	9	Green	9	8 A	150 V	Free Hanging (In-Line)	180 °	16 AWG	24 AWG	1.5 mm²	0.14 mm²	Tin	Locking Ramp	8 A	1

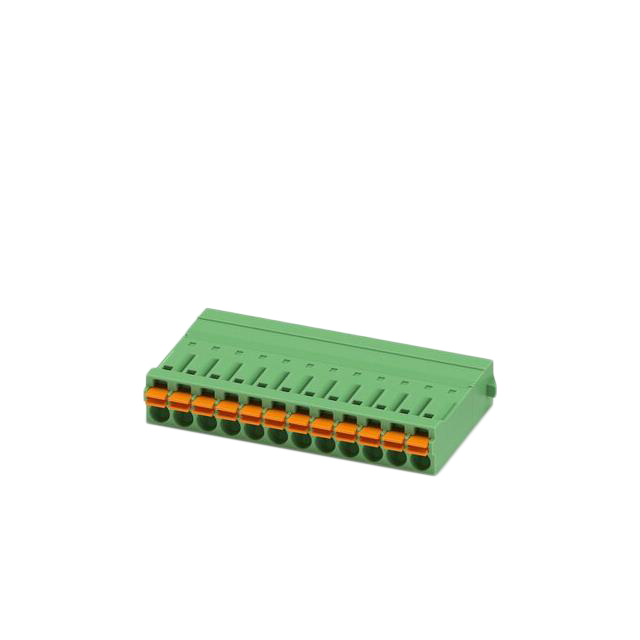

Phoenix Contact 1844206	UL94 V-0	Polyamide (PA) Nylon	10 mm	3.5 mm	0.138 "	320 V	Push-In Spring Screwless - Leg Spring	12	Green	12	8 A	150 V	Free Hanging (In-Line)	180 °	16 AWG	24 AWG	1.5 mm²	0.14 mm²	Tin	Locking Ramp	8 A	1	0.14 mm˛	1.5 mm˛
Phoenix Contact 1844125				3.5 mm	0.138 "	320 V	Push-In Spring Screwless - Leg Spring	4	Green	4	8 A	150 V	Free Hanging (In-Line)	180 °	16 AWG	24 AWG	1.5 mm²	0.14 mm²	Tin	Locking Ramp	8 A	1
