V4D1A60B Series

Catalog

SWITCH ACTUATORS 1-POLE, ON - NONE - ON, 20A 12VDC NOT HP RATED, ILLUMINATED, SEALED V-SERIES SWITCH ONLY, .250 TAB (Q.C.), 8 TERMINAL BASE AND NO ACTUATOR

Part	Electrical Life	Mechanical Life	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Voltage Rating - DC	Illumination Type, Color	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Circuit	Ingress Protection	Approval Agency	Actuator Type	Current Rating (Amps)	Mounting Type	Color - Actuator/Cap

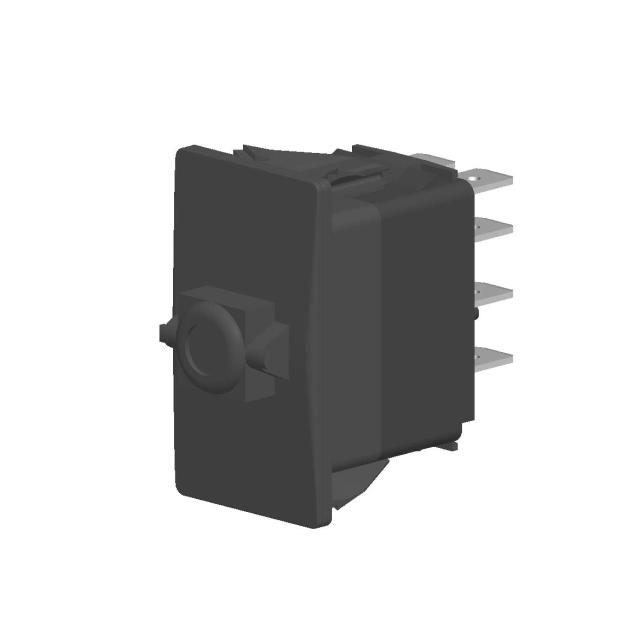

Carling Technologies V4D1A60B-00000-000	100000 Cycles	100000 Cycles	12 VAC/DC	85 °C	-40 C	Varies by Cap	12 V	Incandescent	On-On	36.83 mm	21.08 mm	Quick Connect - 0.250" (6.3mm)	SPDT	IP66 IP68	CSA UL VDE	Actuator Arm Cap Required Illuminated	20 A	Panel Mount Snap-In
Carling Technologies V4D1A60B-CMC00-000	100000 Cycles	100000 Cycles	12 VAC/DC	85 °C	-40 C	No Marking	12 V	Incandescent Red	On-On	36.83 mm	21.08 mm	Quick Connect - 0.250" (6.3mm)	SPDT	IP66 IP68	CSA UL VDE	Convex (Reverse V) - Illuminated	20 A	Panel Mount Snap-In	Black
Carling Technologies V4D1A60B-CMB00-000	100000 Cycles	100000 Cycles	12 VAC/DC	85 °C	-40 C	No Marking	12 V	Incandescent Red	On-On	36.83 mm	21.08 mm	Quick Connect - 0.250" (6.3mm)	SPDT	IP66 IP68	CSA UL VDE	Convex (Reverse V) - Illuminated	20 A	Panel Mount Snap-In	Black
