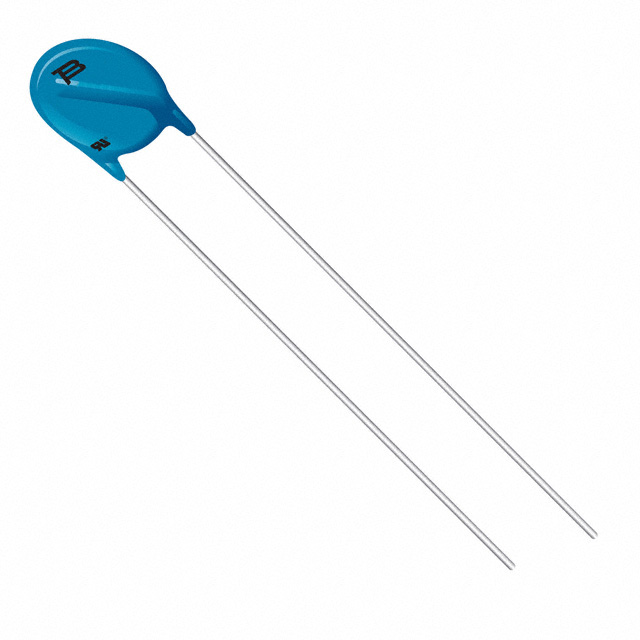

MOV-07 Series

Catalog

VAR MOV 510VAC/675VDC 1200A 820V THRU-HOLE RADIAL T/R

Part	Varistor Voltage (Typ)	Mounting Type	Current - Surge	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Capacitance @ Frequency	Number of Circuits	Varistor Voltage (Max) [Max]	Maximum AC Volts [Max]	Energy	Maximum DC Volts [Max]	Varistor Voltage (Max)
Bourns Inc. MOV-07D821KTR	820 V	Through Hole	1200 A	738 V	85 C	-40 ¯C	Disc 7mm	1 kHz 72 pF	1	902 V	510 V	40 J	675 V
Bourns Inc. MOV-07D471K	470 V	Through Hole	1200 A	423 V	85 C	-40 ¯C	Disc 7mm	126 pF	1	517 V	300 V	30 J	385 V
Bourns Inc. MOV-07D270K	27 V	Through Hole	250 A	24 V	85 C	-40 ¯C	Disc 7mm	3120 pF	1	30 V	17 V	1.4 J	18 V
Bourns Inc. MOV-07D270KTR	27 V	Through Hole	250 A	24 V	85 C	-40 ¯C	Disc 7mm	3120 pF	1	30 V	17 V	1.4 J	18 V
Bourns Inc. MOV-07D751KTR	750 V	Through Hole	1200 A	675 V	85 C	-40 ¯C	Disc 7mm	84 pF	1	825 V	460 V	38 J	620 V
Bourns Inc. MOV-07D680KTR	68 V	Through Hole	250 A	61 V	85 C	-40 ¯C	Disc 7mm	1200 pF	1		40 V	3.6 J	56 V	75 V
Bourns Inc. MOV-07D680K	68 V	Through Hole	250 A	61 V	85 C	-40 ¯C	Disc 7mm	1200 pF	1		40 V	3.6 J	56 V	75 V
Bourns Inc. MOV-07D561K	560 V	Through Hole	1200 A	504 V	85 C	-40 ¯C	Disc 7mm	108 pF	1	616 V	350 V	30 J	460 V
Bourns Inc. MOV-07D301KTR	300 V	Through Hole	1200 A	270 V	85 C	-40 ¯C	Disc 7mm	198 pF	1	330 V	190 V	20 J	250 V
Bourns Inc. MOV-07D180KTR	18 V	Through Hole	250 A	16 V	85 C	-40 ¯C	Disc 7mm	3840 pF	1	20 V	11 V	0.9 J	14 V
