TR9CI6666 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 160W

Part	Applications	Current - Output (Max) [Max]	Region Utilized	Efficiency	Input Connector	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	No Load Power Consumption	Voltage - Output	Cord Length	Cord Length	Approval Agency	Power (Watts)	Form	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Output Connector	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [x]	Output Connector [diameter]	Polarization

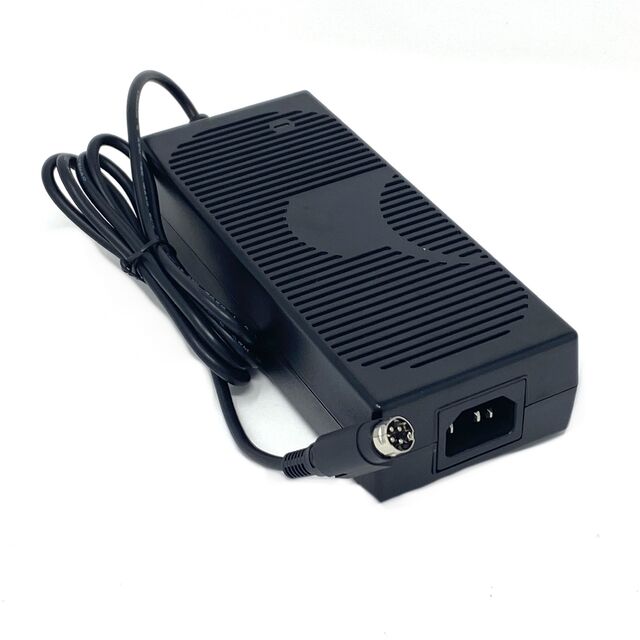

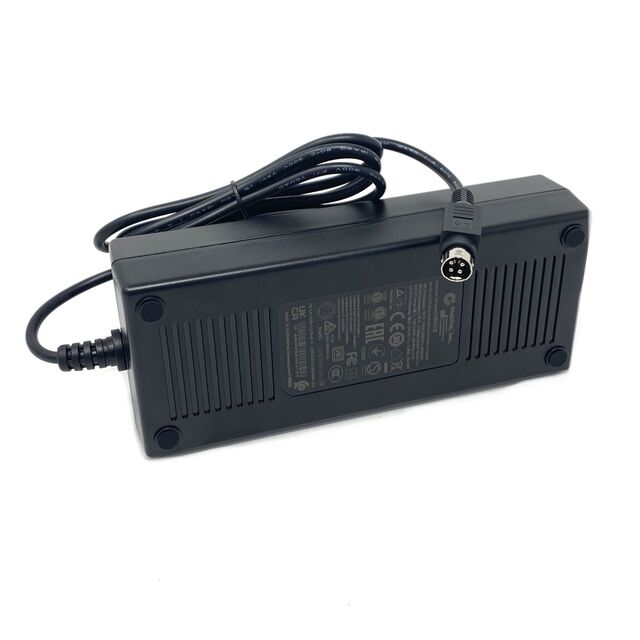

GlobTek, Inc. TR9CI6666YL4IMR6B	Household Appliances ITE (Commercial) Medical	6.66 A	International	CoC Tier 2 Level VI	IEC 320-C14	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	150 mW	24 V	1.2 m	47.2 in	CB CCC CE cETLus EAC ETL FCC PSE RCM S-Mark UkrSEPRO VCCI	160 W	Desktop (Class I)	40 °C	-10 °C	Cord (Sold Separately)	Power DIN 4 Pin	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	264 VAC	90 VAC

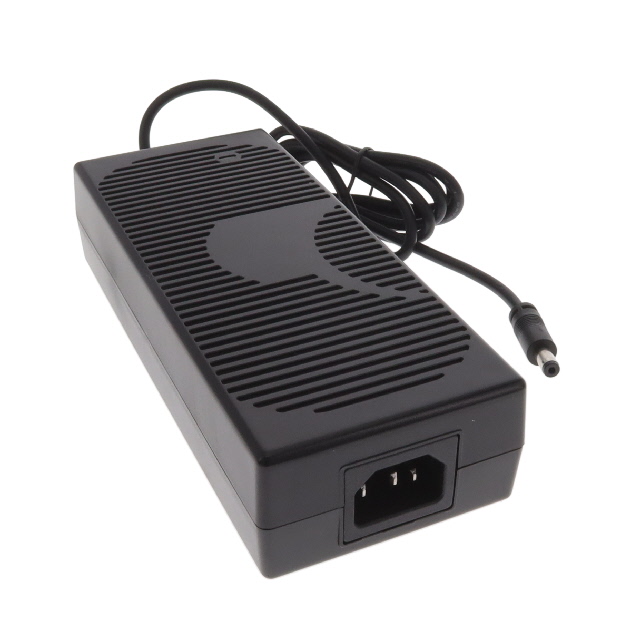

GlobTek, Inc. TR9CI6666CCPCIMR6B	Household Appliances ITE (Commercial) Medical	6.66 A	International	CoC Tier 2 Level VI	IEC 320-C14	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	150 mW	24 V	1.2 m	47.2 in	CB CCC CE cETLus EAC ETL FCC PSE RCM S-Mark UkrSEPRO VCCI	160 W	Desktop (Class I)	40 °C	-10 °C	Cord (Sold Separately)	Barrel Plug	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	264 VAC	90 VAC	11 mm	2.1 mm 5.5 mm	Positive Center
