GLDA01 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 120V
| Part | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Circuit | Operating Position | Operating Position | Overtravel | Overtravel | Voltage Rating - AC | Operating Force | Mounting Type | Actuator Type | Pretravel | Pretravel | Switch Function | Ingress Protection | Voltage Rating - DC | Mechanical Life | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

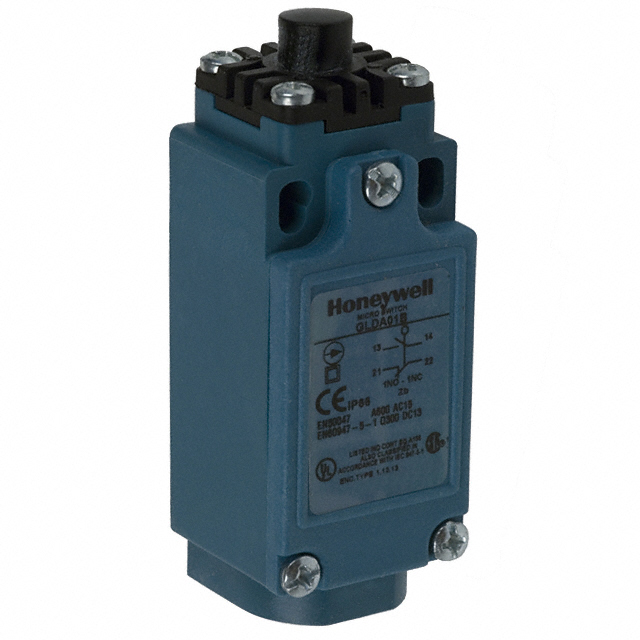

 Honeywell Sensing and Productivity Solutions | 6 A 550 mA | 85 °C | -40 °C | Screw Terminal | SPDT | 18 mm | 0.71 " | 3 mm | 0.118 in | 120 V | 1632 gf | Chassis Mount | Round (Pin Plunger) | 0.12 in | 3 mm | On-Mom | IP67 - Dust Tight Waterproof | 125 VDC | 15000000 Cycles | |

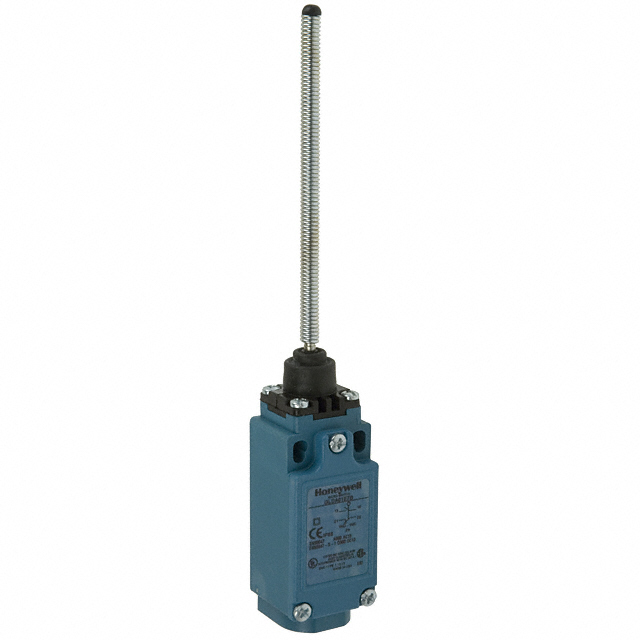

 Honeywell Sensing and Productivity Solutions | 6 A 550 mA | 85 °C | -25 °C | Screw Terminal | SPDT | 16 ° | 35 ° | 120 V | 132 gf | Chassis Mount | Coil Spring | 16 ° | On-Mom | IP66 | 125 VDC | 5000000 Cycles | 10 ° |
