737-012 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 12POS 0.156

Part	Pitch [x]	Pitch [x]	Contact Material	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Card Type	Number of Rows	Material - Insulation	Contact Type	Termination Rows	Number of Positions/Bay/Row [custom]	Termination	Color	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions
EDAC Inc. 737-012-540-101	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Single Edge	1	Polyester Thermoplastic	Cantilever	1	12	Press-Fit Wire Wrap	Black	Single	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12

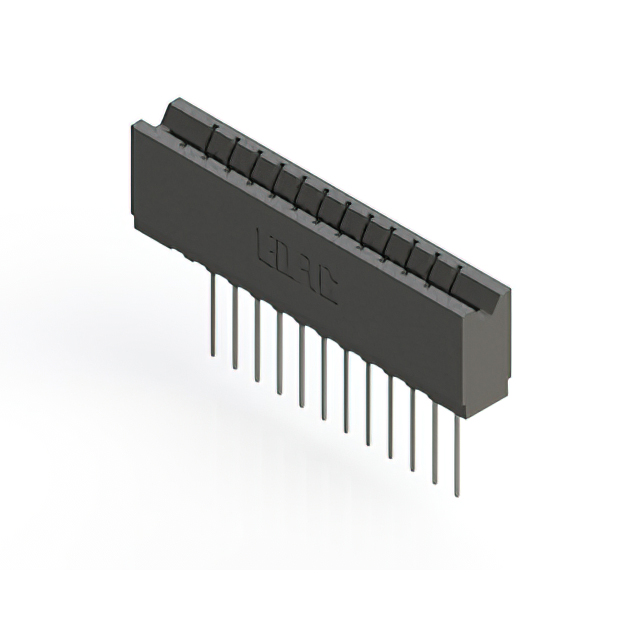

EDAC Inc. 737-012-541-106	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Single Edge	1	Polyester Thermoplastic	Cantilever	1	12	Press-Fit Wire Wrap	Black	Single	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12

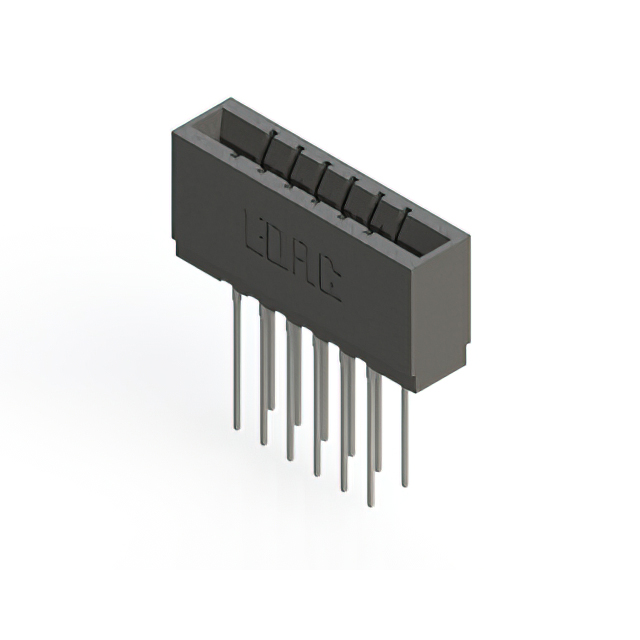

EDAC Inc. 737-012-541-201	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Dual Edge	2	Polyester Thermoplastic	Cantilever	2	6	Press-Fit Wire Wrap	Black	Dual	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12

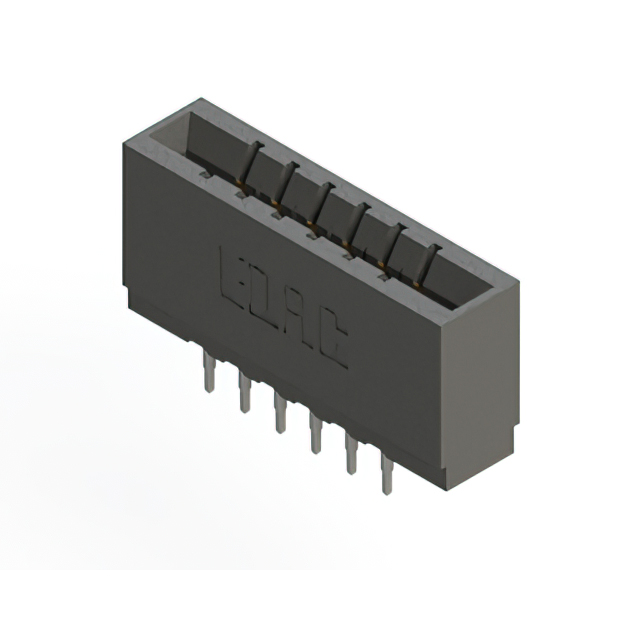

EDAC Inc. 737-012-525-201	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Dual Edge	2	Polyester Thermoplastic	Cantilever	2	6	Press-Fit	Black	Dual	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12

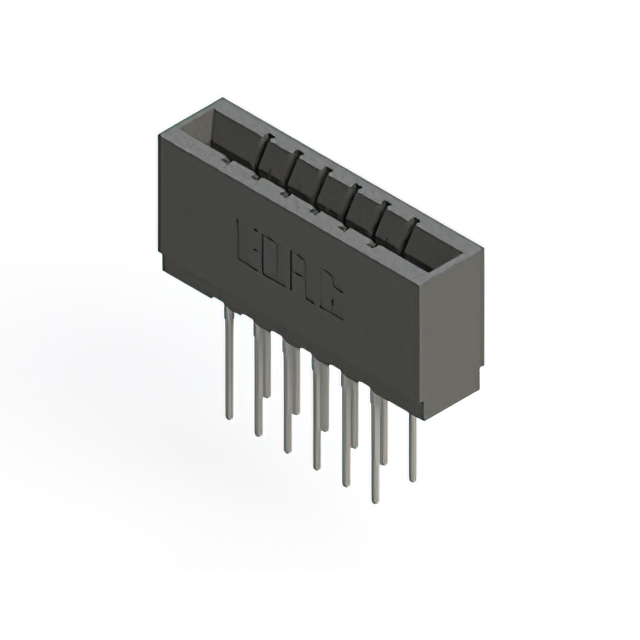

EDAC Inc. 737-012-540-201	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Dual Edge	2	Polyester Thermoplastic	Cantilever	2	6	Press-Fit Wire Wrap	Black	Dual	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12
EDAC Inc. 737-012-522-101	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Single Edge	1	Polyester Thermoplastic	Cantilever	1	12	Press-Fit	Black	Single	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12

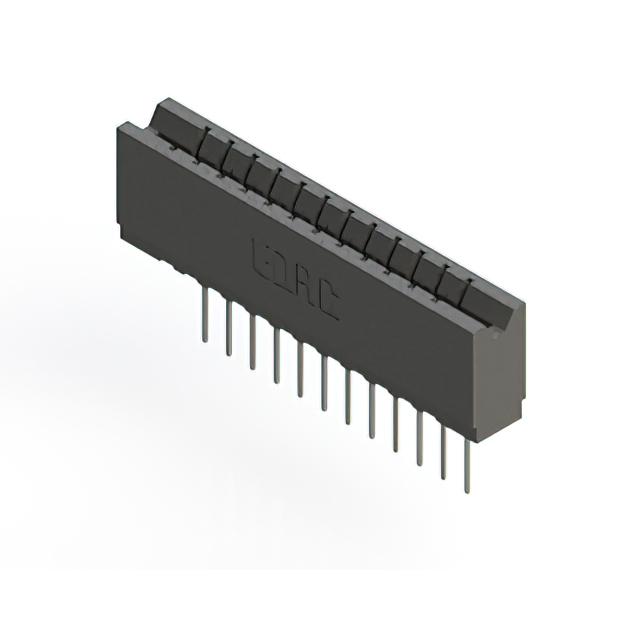

EDAC Inc. 737-012-540-106	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Single Edge	1	Polyester Thermoplastic	Cantilever	1	12	Press-Fit Wire Wrap	Black	Single	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12
EDAC Inc. 737-012-545-101	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Single Edge	1	Polyester Thermoplastic	Cantilever	1	12	Press-Fit Wire Wrap	Black	Single	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12
EDAC Inc. 737-012-541-101	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Single Edge	1	Polyester Thermoplastic	Cantilever	1	12	Press-Fit Wire Wrap	Black	Single	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12
EDAC Inc. 737-012-525-101	0.156 in	3.96 mm	Copper Alloy	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Non Specified - Single Edge	1	Polyester Thermoplastic	Cantilever	1	12	Press-Fit	Black	Single	-40 °C	105 ░C	0.76 Ám	30 Áin	Through Hole	12
