JWM11B Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPST 10A 125V
| Part | Mechanical Life | Electrical Life | Circuit | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Actuator Marking | Switch Function | Ingress Protection | Actuator Type | Color - Actuator/Cap | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | No Marking | On-Off | Dust Proof | Concave (Curved) | Black | Epoxy Sealed Terminals |

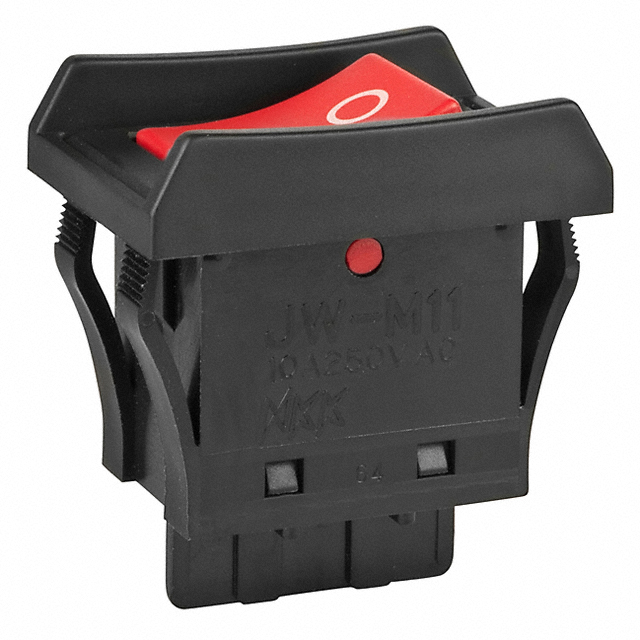

NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | O - | On-Off | Dust Proof | Concave (Curved) | Red | Epoxy Sealed Terminals |

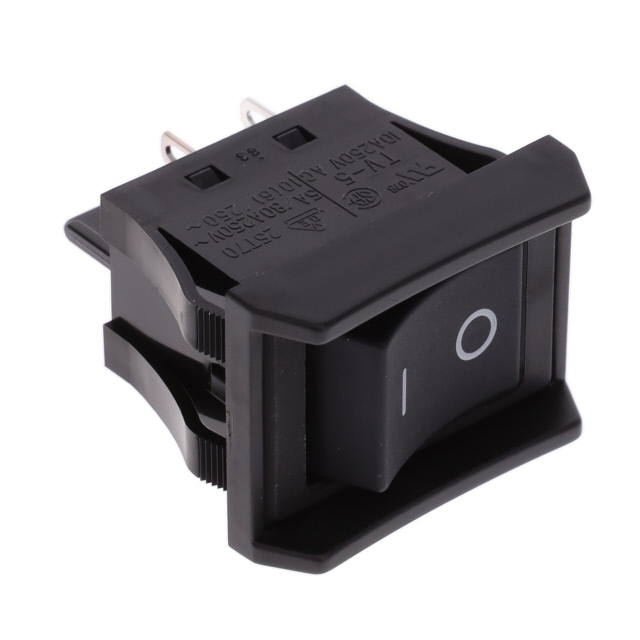

 NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | O I | On-Off | Dust Proof | Concave (Curved) | Black | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | No Marking | On-Off | Dust Proof | Concave (Curved) | Epoxy Sealed Terminals | |
NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | O - | On-Off | Dust Proof | Concave (Curved) | Ivory | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | O I | On-Off | Dust Proof | Concave (Curved) | Red | Epoxy Sealed Terminals |
NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | No Marking | On-Off | Dust Proof | Concave (Curved) | Ivory | Epoxy Sealed Terminals |
NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | O - | On-Off | Dust Proof | Concave (Curved) | Red | Epoxy Sealed Terminals |
NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | No Marking | On-Off | Dust Proof | Concave (Curved) | Red | Epoxy Sealed Terminals |
NKK Switches | 25000 Steps | 25000 Steps | SPST | Panel Mount Snap-In | 15.4 mm | 24 mm | CSA UL VDE | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | 10 A | 125 V | No Marking | On-Off | Dust Proof | Concave (Curved) | Red | Epoxy Sealed Terminals |
