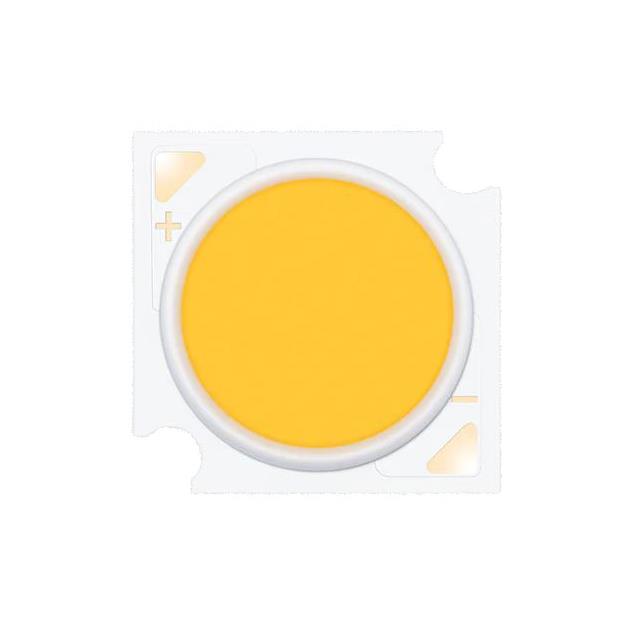

SPHWHAHDNK23 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED COB D GEN2 WM WHT SQ 3000K

Part	Color	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Configuration	Current - Test	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Temperature - Test	Viewing Angle	Lens Type	CRI (Color Rendering Index)	Height [z]	Type	Luminous Flux @ Current/Temperature	CCT (K)	CCT (K)
Samsung Semiconductor, Inc. SPHWHAHDNK23YZV3D2	Warm White	22 mm	28 mm	28 mm	2.76 A	Square	1.08 A	34.6 V	169 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)	6304 lm	3-Step MacAdam Ellipse	3000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZT3D2	Neutral White	22 mm	28 mm	28 mm	2.76 A	Square	1.08 A	34.6 V	174 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)	6506 lm	3-Step MacAdam Ellipse	4000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZT3DB	Neutral White	22 mm	28 mm	28 mm	2.16 A	Square	1.08 A	34 V	166 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)	6084 lm	3-Step MacAdam Ellipse	4000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZR3DB	Cool White	22 mm	28 mm	28 mm	2.16 A	Square	1.08 A	34 V	166 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)	6113 lm	3-Step MacAdam Ellipse	5000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZT3DC	Neutral White	22 mm	28 mm	28 mm	2.16 A	Square	1.08 A	33.7 V	180 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)	6560 lm	3-Step MacAdam Ellipse	4000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZV3D3	Warm White	22 mm	28 mm	28 mm	2.76 A	Square	1.08 A	34 V	175 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)	6440 lm	3-Step MacAdam Ellipse	3000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZV3DB	Warm White	22 mm	28 mm	28 mm	2.16 A	Square	1.08 A	34 V	159 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)	5837 lm	3-Step MacAdam Ellipse	3000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZV3DC	Warm White	22 mm	28 mm	28 mm	2.16 A	Square	1.08 A	33.7 V	177 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)	6446 lm	3-Step MacAdam Ellipse	3000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZT3D4	Neutral White	22 mm	28 mm	28 mm	2.76 A	Square	1.08 A	33.6 V	192 lm/W	85 °C	115 °	Flat	70	1.7 mm	Chip On Board (COB)	6962 lm	3-Step MacAdam Ellipse	4000 K
Samsung Semiconductor, Inc. SPHWHAHDNK23YZR3DC	Cool White	22 mm	28 mm	28 mm	2.16 A	Square	1.08 A	33.7 V	182 lm/W	85 °C	115 °	Flat	70	1.5 mm	Chip On Board (COB)		3-Step MacAdam Ellipse	5000 K
