9359-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN RECEPT PIN .032-.046" .160"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Socket Depth [z] | Socket Depth [z] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Length - Overall | Length - Overall | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 4.06 mm | 0.16 " | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 30 Áin | 0.76 Ám | Beryllium Copper | 0.16 in | 4.06 mm | 0.09 in | 2.29 mm | Knurled Press-Fit | 1.63 mm | 0.064 in | No Tail | 0.11 in | 2.79 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 4.06 mm | 0.16 " | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 30 Áin | 0.76 Ám | Beryllium Copper | 0.16 in | 4.06 mm | 0.09 in | 2.29 mm | Knurled Press-Fit | 1.63 mm | 0.064 in | No Tail | 0.11 in | 2.79 mm |

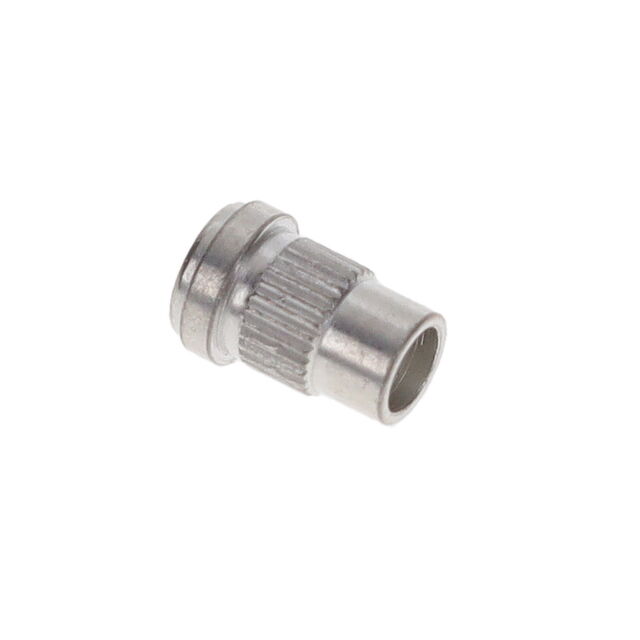

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Tin | 4.06 mm | 0.16 " | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 200 Áin | 5.08 Ám | Beryllium Copper | 0.16 in | 4.06 mm | 0.09 in | 2.29 mm | Knurled Press-Fit | 1.63 mm | 0.064 in | No Tail | 0.11 in | 2.79 mm |
