PSC360G2 Series

Manufacturer: Amphenol Piher Sensing Systems

Catalog

SENSOR ANGLE 360DEG WIRE LEADS

Part	For Measuring	Package / Case	Technology	Output Signal	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Rotation Angle - Electrical, Mechanical [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Linearity	Output

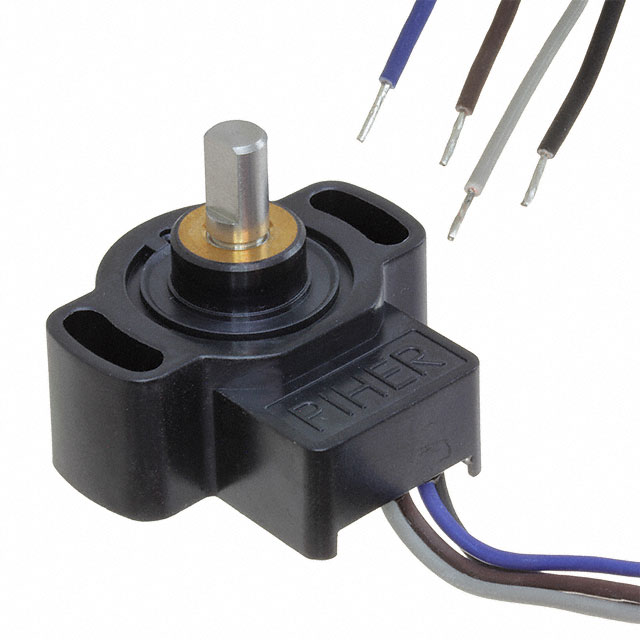

Amphenol Piher Sensing Systems PSC360G2-F1A-C0000-ERA360-RE-K	Angle Linear Rotary	Box with Wire Leads	Hall Effect	Clockwise Increase	125 °C	-40 C	Flatted Shaft	360 °	Chassis Mount	15 V	7 V	Wire Leads	1 %	Analog Voltage
Amphenol Piher Sensing Systems PSC360G2-F1A-C0011-ERA090-05K	Angle Linear Rotary	Box with Wire Leads	Hall Effect	Clockwise Increase	125 °C	-40 C	Flatted Shaft	90 °	Chassis Mount	5 V	4.5 V	Wire Leads	1 %	Analog Voltage
Amphenol Piher Sensing Systems PSC360G2-F2AA-C0002-ERA360-05K	Angle Linear Rotary	Box with Wire Leads	Hall Effect	Clockwise Increase	125 °C	-40 C	Flatted Shaft	360 °	Chassis Mount	5 V	4.5 V	Wire Leads	1 %	Analog Voltage
Amphenol Piher Sensing Systems PSC360G2-F1A-C0007-ERA180-05K	Angle Linear Rotary	Box with Wire Leads	Hall Effect	Clockwise Increase	125 °C	-40 C	Flatted Shaft	180 °	Chassis Mount	5 V	4.5 V	Wire Leads	1 %	Analog Voltage
Amphenol Piher Sensing Systems PSC360G2-F1A-C0000-ERA360-05K	Angle Linear Rotary	Box with Wire Leads	Hall Effect	Clockwise Increase	125 °C	-40 C	Flatted Shaft	360 °	Chassis Mount	5 V	4.5 V	Wire Leads	1 %	Analog Voltage
Amphenol Piher Sensing Systems PSC360G2-F1P-C0000-ERA360-05K-200	Angle Linear Rotary	Box with Wire Leads	Hall Effect	Clockwise Increase	125 °C	-40 C	Flatted Shaft	360 °	Chassis Mount	5 V	4.5 V	Wire Leads	1 %	PWM
