DA04-11 Series

Catalog

DISPLAY 7SEG 0.39" DBL RED 16DIP

Part	Package / Case	Current - Test	Power Dissipation (Max) [Max]	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Display Type	Voltage - Forward (Vf) (Typ)	Color	Common Pin	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating

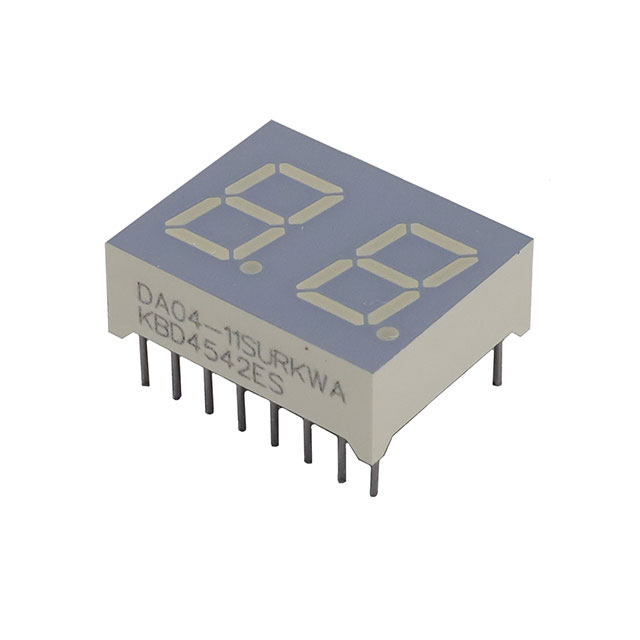

Kingbright DA04-11SURKWA	16-DIP (0.500" 12.70mm)	20 mA	75 mw	645 nm	10 mm	0.39 in	2	7-Segment	1.95 V	Red	Common Anode	7 mm	0.795 in	16 mm	0.276 in	0.63 "	20.2 mm	54 mcd
Kingbright DA04-11GWA	16-DIP (0.500" 12.70mm)	20 mA	62.5 mW	565 nm	10 mm	0.39 in	2	7-Segment	2.2 V	Green	Common Anode							8 mcd

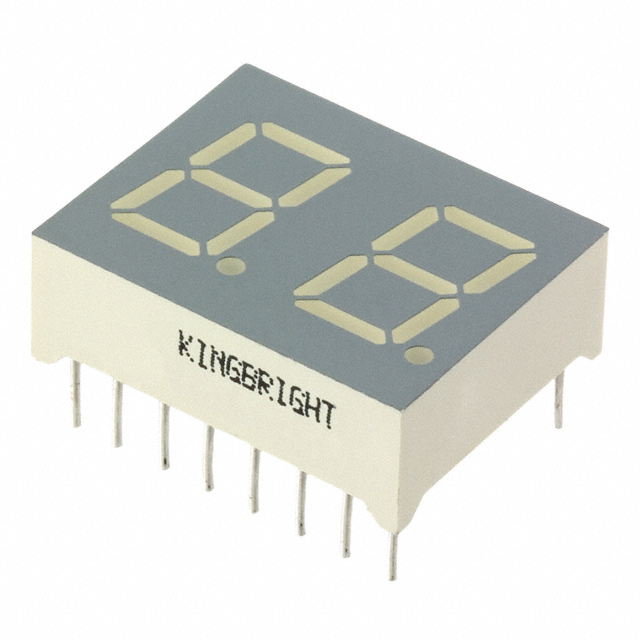

Kingbright DA04-11EWA	16-DIP (0.500" 12.70mm)	20 mA	75 mw	627 nm	10 mm	0.39 in	2	7-Segment	2 V	Red	Common Anode
Kingbright DA04-11SYKWA	16-DIP (0.500" 12.70mm)	20 mA	75 mw	590 nm	10 mm	0.39 in	2	7-Segment	2 V	Yellow	Common Anode	7 mm	0.795 in	16 mm	0.276 in	0.63 "	20.2 mm	84 mcd
Kingbright DA04-11CGKWA	16-DIP (0.500" 12.70mm)	20 mA	75 mw		10 mm	0.39 in	2	7-Segment	2.1 V	Green	Common Anode	7 mm	0.795 in	16 mm	0.276 in	0.63 "	20.2 mm	25 mcd

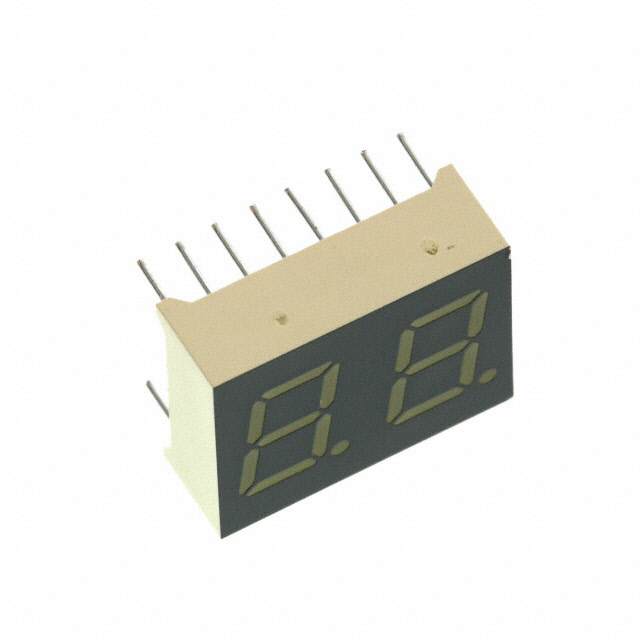

Kingbright DA04-11SRWA	16-DIP (0.500" 12.70mm)	20 mA	75 mw	660 nm	10 mm	0.39 in	2	7-Segment	1.85 V	Red	Common Anode							29 mcd
Kingbright DA04-11YWA	16-DIP (0.500" 12.70mm)	20 mA	75 mw	590 nm	10 mm	0.39 in	2	7-Segment	2.1 V	Yellow	Common Anode							5.8 mcd
