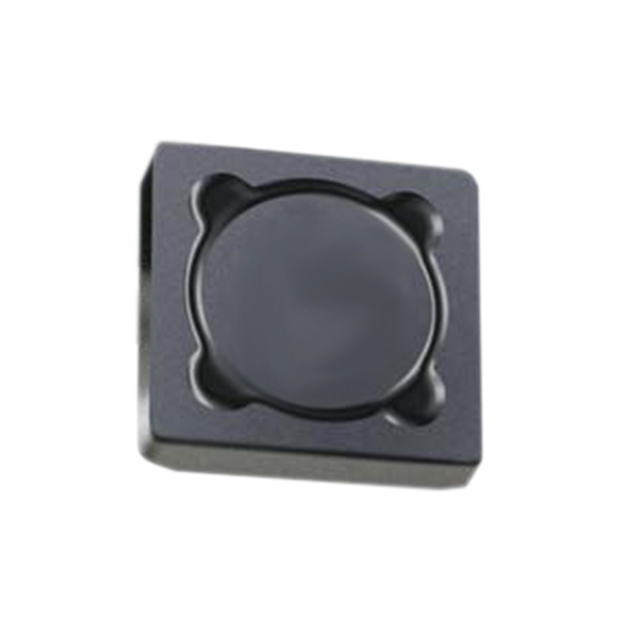

34L Series

Catalog

FIXED IND 3.3UH 1A 150 MOHM SMD

Part	Inductance	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Type	Tolerance	DC Resistance (DCR) [Max]
Murata Electronics 34L332C	3.3 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	1 A	125 °C	-40 C	150 mOhm	1.2 mm	0.047 "	Surface Mount	Wirewound	30 %
Murata Electronics 34L224C	220 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	160 mA	125 °C	-40 C		1.2 mm	0.047 "	Surface Mount	Wirewound	20 %	8 Ohm
Murata Electronics 34L472C	4.7 ÁH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	700 mA	125 °C	-40 C		1.2 mm	0.047 "	Surface Mount	Wirewound	30 %	180 mOhm
Murata Electronics 34L154C	150 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	0.18 A	125 °C	-40 C	6.1 Ohm	1.2 mm	0.047 "	Surface Mount	Wirewound	20 %
Murata Electronics 34L473C	47 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	0.31 A	125 °C	-40 C		1.2 mm	0.047 "	Surface Mount	Wirewound	20 %	1.82 Ohm
Murata Electronics 34L122C	1.2 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	1.7 A	125 °C	-40 C		1.2 mm	0.047 "	Surface Mount	Wirewound	30 %	75 mOhm
Murata Electronics 34L682C	6.8 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	0.68 A	125 °C	-40 C	265 mOhm	1.2 mm	0.047 "	Surface Mount	Wirewound	30 %
Murata Electronics 34L683C	68 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	0.28 A	125 °C	-40 C		1.2 mm	0.047 "	Surface Mount	Wirewound	20 %	2.13 Ohm
Murata Electronics 34L152C	1.5 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	1.65 A	125 °C	-40 C		1.2 mm	0.047 "	Surface Mount	Wirewound	30 %	85 mOhm
Murata Electronics 34L104C	100 µH	Nonstandard	5.2 mm	0.205 "	0.205 "	5.2 mm	Shielded	0.24 A	125 °C	-40 C	3.33 Ohm	1.2 mm	0.047 "	Surface Mount	Wirewound	20 %
