GBC25S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD R/A 25POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Termination	Fastening Type	Insulation Material	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Material	Number of Positions Loaded	Connector Type	Contact Finish - Post	Material Flammability Rating	Number of Rows	Shrouding	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Insulation Color	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Pitch - Mating	Pitch - Mating
Sullins Connector Solutions GBC25SGSN-M89	2.54 µm	100 µin	Male Pin	Solder	Push-Pull	Nylon 9T Polyamide (PA9T)	Square	150 °C	-65 ░C	3.56 mm	0.14 in	Gold	Phosphor Bronze	All	Header Breakaway	Tin	UL94 V-0	1	Unshrouded	3 A	8.08 mm	0.318 in	Black	Board to Board Cable	0.25 µm	10 µin	25	Right Angle Surface Mount	0.1 "	2.54 mm
Sullins Connector Solutions GBC25SABN-M30	2.54 µm	100 µin	Male Pin	Solder	Push-Pull	Nylon 9T Polyamide (PA9T)	Square	150 °C	-65 ░C	2.54 mm	0.1 in	Gold	Phosphor Bronze	All	Header Breakaway	Tin	UL94 V-0	1	Unshrouded	3 A	5.84 mm	0.23 in	Black	Board to Board Cable	0.25 µm	10 µin	25	Surface Mount	0.1 "	2.54 mm
Sullins Connector Solutions GBC25SFBN-M30	2.54 µm	100 µin	Male Pin	Solder	Push-Pull	Nylon 9T Polyamide (PA9T)	Square	150 °C	-65 ░C	2.54 mm	0.1 in	Gold	Phosphor Bronze	All	Header Breakaway	Tin	UL94 V-0	1	Unshrouded	3 A	8.08 mm	0.318 in	Black	Board to Board Cable	0.25 µm	10 µin	25	Surface Mount	0.1 "	2.54 mm

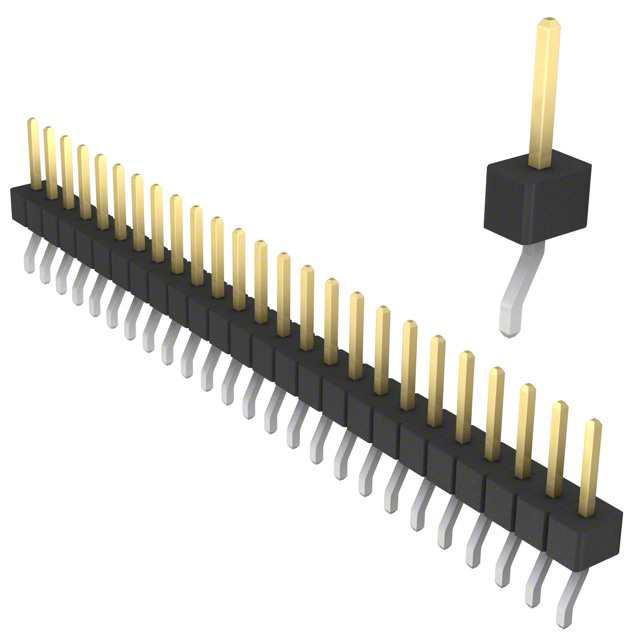

Sullins Connector Solutions GBC25SBSN-M89	2.54 µm	100 µin	Male Pin	Solder	Push-Pull	Nylon 9T Polyamide (PA9T)	Square	150 °C	-65 ░C	3.56 mm	0.14 in	Gold	Phosphor Bronze	All	Header Breakaway	Tin	UL94 V-0	1	Unshrouded	3 A	5.84 mm	0.23 in	Black	Board to Board Cable	0.25 µm	10 µin	25	Right Angle Surface Mount	0.1 "	2.54 mm
