MB2011V Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON SPDT 6A 125V
| Part | Electrical Life | Mechanical Life | Voltage Rating - AC | Circuit | Termination Style | Mounting Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Current Rating (Amps) | Actuator Type | Panel Cutout Dimensions [diameter] | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

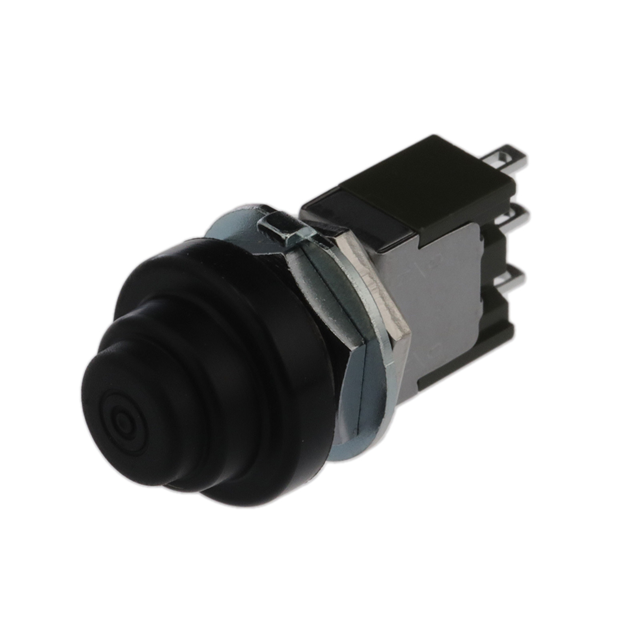

 NKK Switches | 25000 Steps | 100000 Cycles | 125 V | SPDT | Solder Lug | Panel Mount Rear | Standard | 85 °C | -30 ░C | On-Mom | 6 A | Plunger for Cap | 12.5 mm | No Marking |

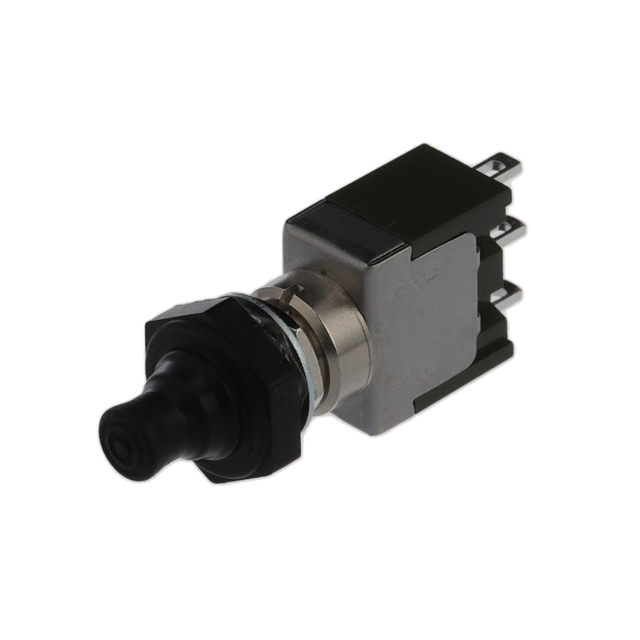

 NKK Switches | 25000 Steps | 100000 Cycles | 125 V | SPDT | Solder Lug | Panel Mount Rear | Standard | 85 °C | -30 ░C | On-Mom | 6 A | Plunger for Cap | 6.5 mm | No Marking |
