DAC8811 Series

Catalog

KIT PERFORMANCE DEMO FOR DAC8811

Part	Supplied Contents	Settling Time	Number of DAC's	Utilized IC / Part	DAC Type	Number of Bits	Data Interface	Package / Case	Output Type	Reference Type	Mounting Type	Architecture	INL/DNL (LSB)	INL/DNL (LSB)	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Supplier Device Package	Package / Case [custom]	Package / Case	INL/DNL (LSB)

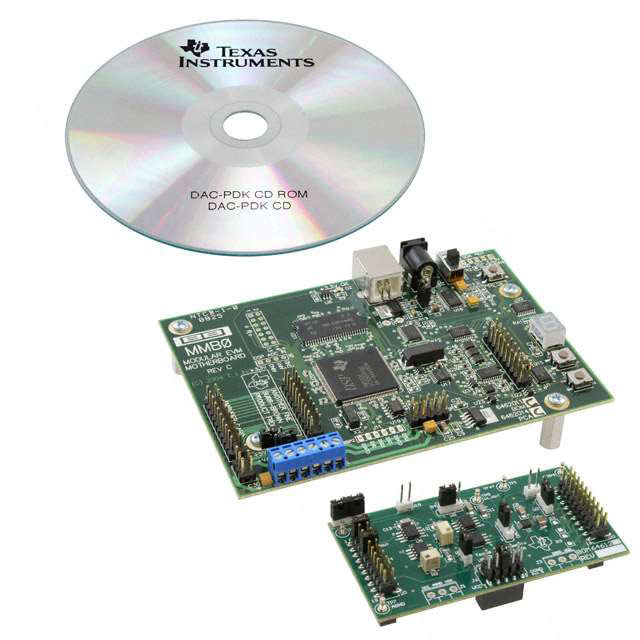

Texas Instruments DAC8811EVM-PDK	Board(s)	300 ns	1	DAC8811	Current	16	Serial
Texas Instruments DAC8811IBDRBT		500 ns				16	SPI	8-VDFN Exposed Pad	Current - Unbuffered	External	Surface Mount	Multiplying DAC	1 LSB	2 LSB	2.7 V	5.5 V	85 °C	-40 °C	5.5 V	2.7 V	8-SON (3x3)
Texas Instruments DAC8811IBDGKT		500 ns				16	SPI	8-MSOP 8-TSSOP	Current - Unbuffered	External	Surface Mount	Multiplying DAC	1 LSB	2 LSB	2.7 V	5.5 V	85 °C	-40 °C	5.5 V	2.7 V		0.118 in	3 mm
Texas Instruments DAC8811ICDGKRG4		500 ns				16	SPI	8-MSOP 8-TSSOP	Current - Unbuffered	External	Surface Mount	Multiplying DAC			2.7 V	5.5 V	85 °C	-40 °C	5.5 V	2.7 V		0.118 in	3 mm	±1
Texas Instruments DAC8811ICDRBRG4		500 ns				16	SPI	8-VDFN Exposed Pad	Current - Unbuffered	External	Surface Mount	Multiplying DAC			2.7 V	5.5 V	85 °C	-40 °C	5.5 V	2.7 V	8-SON (3x3)			±1
Texas Instruments DAC8811IBDGKTG4		500 ns				16	SPI	8-MSOP 8-TSSOP	Current - Unbuffered	External	Surface Mount	Multiplying DAC	1 LSB	2 LSB	2.7 V	5.5 V	85 °C	-40 °C	5.5 V	2.7 V		0.118 in	3 mm
Texas Instruments DAC8811EVM	Board(s)	300 ns	1	DAC8811	Current	16	Serial
Texas Instruments DAC8811IBDRBR		500 ns				16	SPI	8-VDFN Exposed Pad	Current - Unbuffered	External	Surface Mount	Multiplying DAC	1 LSB	2 LSB	2.7 V	5.5 V	85 °C	-40 °C	5.5 V	2.7 V	8-SON (3x3)
Texas Instruments DAC8811IBDGKR		500 ns				16	SPI	8-MSOP 8-TSSOP	Current - Unbuffered	External	Surface Mount	Multiplying DAC	1 LSB	2 LSB	2.7 V	5.5 V	85 °C	-40 °C	5.5 V	2.7 V		0.118 in	3 mm
Texas Instruments DAC8811ICDRBT		500 ns				16	SPI	8-VDFN Exposed Pad	Current - Unbuffered	External	Surface Mount	Multiplying DAC			2.7 V	5.5 V	85 °C	-40 °C	5.5 V	2.7 V	8-SON (3x3)			±1
