SLI-343 Series

Circular high-brightness LED lamp

Manufacturer: Rohm Semiconductor

Catalog

Circular high-brightness LED lamp

Description

AI

ROHM's lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.

Catalog

Circular high-brightness LED lamp

Part	Configuration	Lens Size [diameter]	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Transparency	Color	Lens Style	Mounting Type	Height (Max) [z]	Supplier Device Package	Package / Case	Lens Color	Millicandela Rating	Wavelength - Dominant	Wavelength - Peak

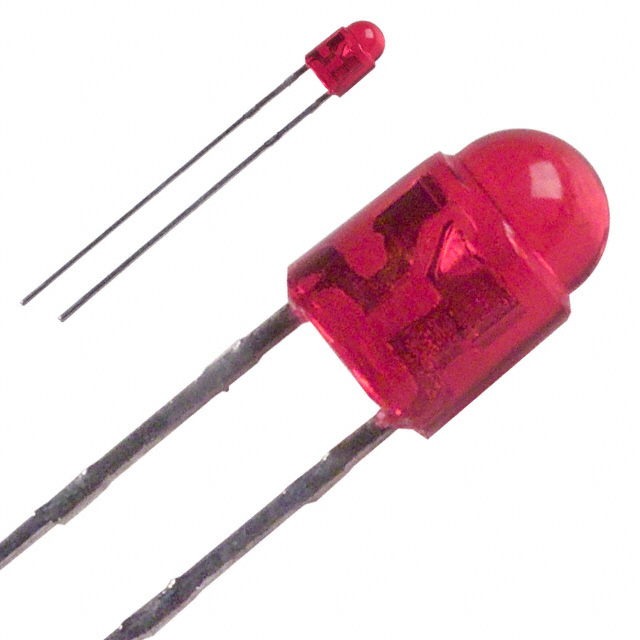

Rohm Semiconductor SLI-343UR3F	Standard	3.1 mm	20 mA	1.9 V	40 °	Diffused	Red	Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Red	350 mcd	620 nm
Rohm Semiconductor SLI-343URC3F	Standard	3.1 mm	20 mA	1.9 V	40 °	Diffused	Red	Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Red	450 mcd	620 nm
Rohm Semiconductor SLI-343Y8Y3F	Standard	3.1 mm	20 mA	2.2 V	40 °	Diffused	Yellow	Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Yellow	470 mcd	590 nm

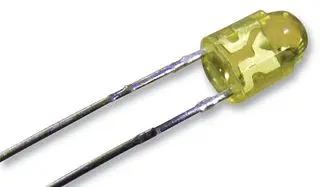

Rohm Semiconductor SLI-343YCT32	Standard	3.1 mm	20 mA	1.9 V	40 °	Clear	Yellow	Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Yellow	350 mcd	587 nm

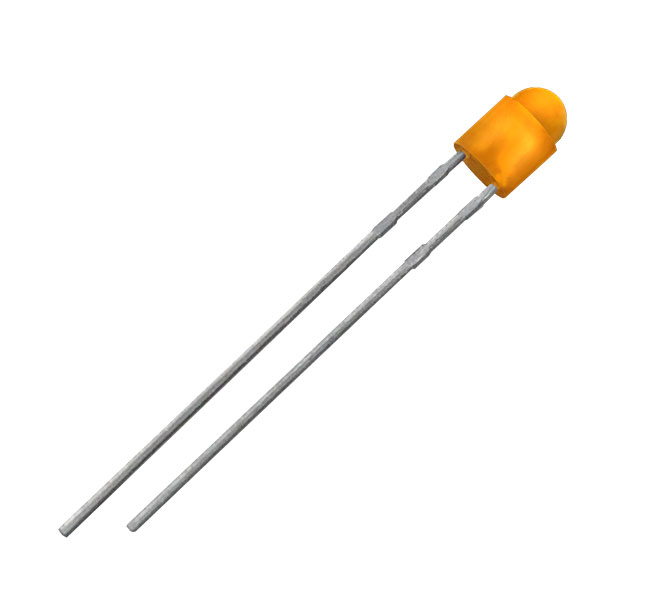

Rohm Semiconductor SLI-343DU3F	Standard	3.1 mm	20 mA	1.9 V	40 °	Diffused		Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Orange	350 mcd	605 nm

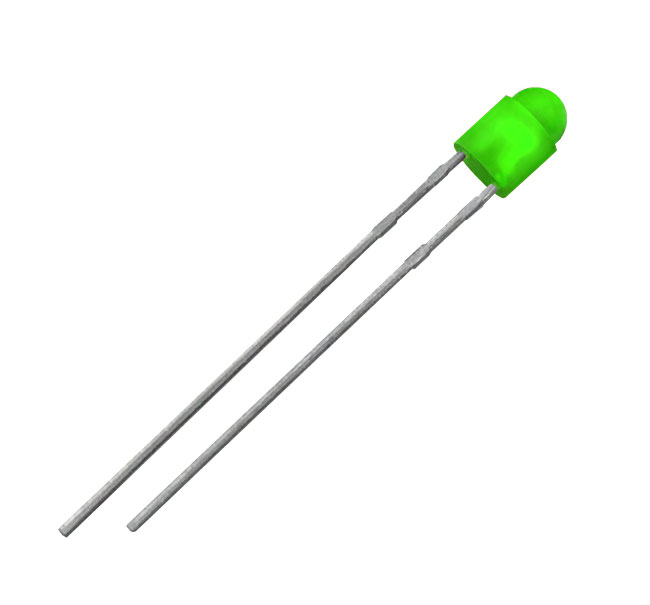

Rohm Semiconductor SLI-343MG3F	Standard	3.1 mm	20 mA	2.1 V	40 °	Diffused	Green	Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Green	180 mcd	572 nm
Rohm Semiconductor SLI-343YC3F	Standard	3.1 mm	20 mA	1.9 V	40 °	Clear	Yellow	Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Yellow	350 mcd	587 nm
Rohm Semiconductor SLI-343URCT32	Standard	3.1 mm	20 mA	1.9 V	40 °	Clear	Red	Round with Domed Top	Through Hole	5.6 mm		Radial	Red	450 mcd	620 nm
Rohm Semiconductor SLI-343DC3FW	Standard	3.1 mm	20 mA	1.9 V	40 °	Clear		Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Orange	300 mcd		611 nm
Rohm Semiconductor SLI-343P8G3F	Standard	3.1 mm	20 mA	2.2 V	40 °	Diffused	Green	Round with Domed Top	Through Hole	5.6 mm	T-1	Radial	Green	22 mcd	560 nm
