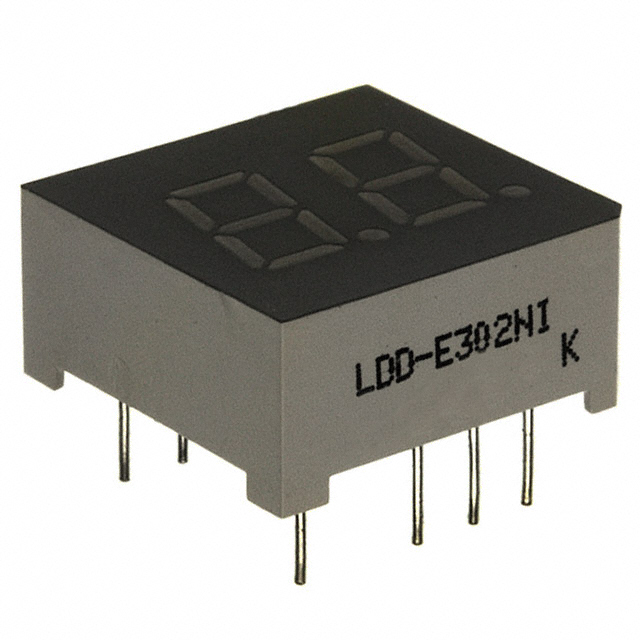

LDD-E302 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISP 7SEG 0.3" DBL GRN 9SIP RA
| Part | Current - Test | Number of Characters | Millicandela Rating | Package / Case | Power Dissipation (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Color | Common Pin | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak | Display Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 10 mA | 2 | 2.5 mcd | 9-SIP Right Angle | 105 mW | 15.5 mm | 7.2 mm | 0.591 in | 0.283 " | 15 mm | 0.61 in | Green | Common Anode | 2.2 V | 7.62 mm | 0.3 in | 565 nm | 7-Segment | |
 Lumex Opto/Components Inc. | 10 mA | 2 | 2.5 mcd | 10-DIP 9 Leads | 105 mW | 15.5 mm | 7.2 mm | 0.591 in | 0.283 " | 15 mm | 0.61 in | Green | Common Anode | 2.2 V | 7.62 mm | 0.3 in | 565 nm | 7-Segment | 0.4 in |
