FUSB302B Series

Programmable USB Type-C Controller with PD (Default SNK)

Catalog

Programmable USB Type-C Controller with PD (Default SNK)

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Current - Supply	Grade	Protocol	Function	Qualification	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Supplied Contents	Type	Utilized IC / Part	Voltage - Supply	Contents

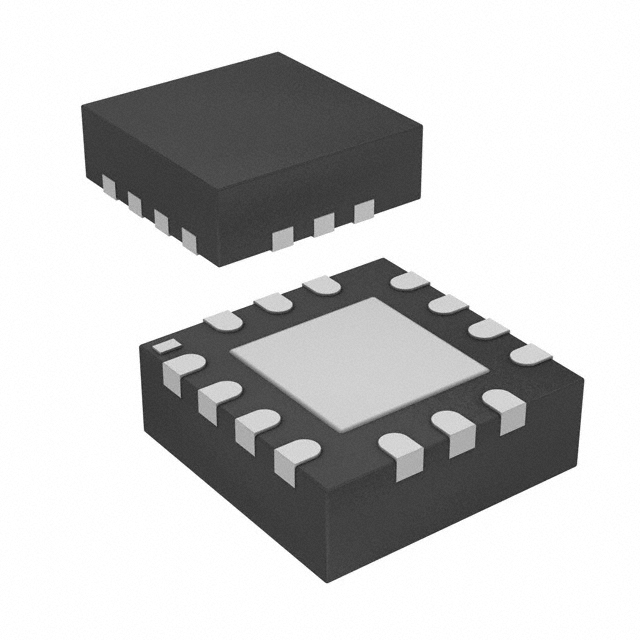

ON Semiconductor FUSB302TV10MPX	14-WQFN (2.5x2.5)	105 °C	-40 °C	USB 3.1	560 mA	Automotive	USB	Controller	AEC-Q100	USB	2.7 V	5.5 V	14-WFQFN Exposed Pad

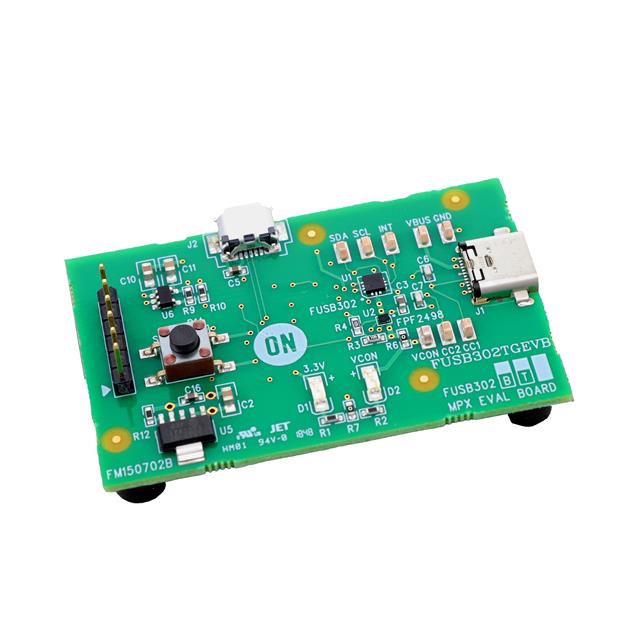

ON Semiconductor FUSB302TGEVB								USB Type-C®						Board(s)	Interface	FUSB302T
ON Semiconductor FUSB302TV11MPX	14-WQFN (2.5x2.5)	105 °C	-40 °C	USB 3.1	560 mA	Automotive	USB	Controller	AEC-Q100	USB	2.7 V	5.5 V	14-WFQFN Exposed Pad
ON Semiconductor FUSB302B11MPX	14-WQFN (2.5x2.5)	85 °C	-40 °C	USB 2.0	560 mA		USB	Controller		I2C			14-WFQFN Exposed Pad				3.3 V 5 V
ON Semiconductor FUSB302TVMPX	14-WQFN (2.5x2.5)	105 °C	-40 °C	USB 3.1	560 mA	Automotive	USB	Controller	AEC-Q100	USB	2.7 V	5.5 V	14-WFQFN Exposed Pad

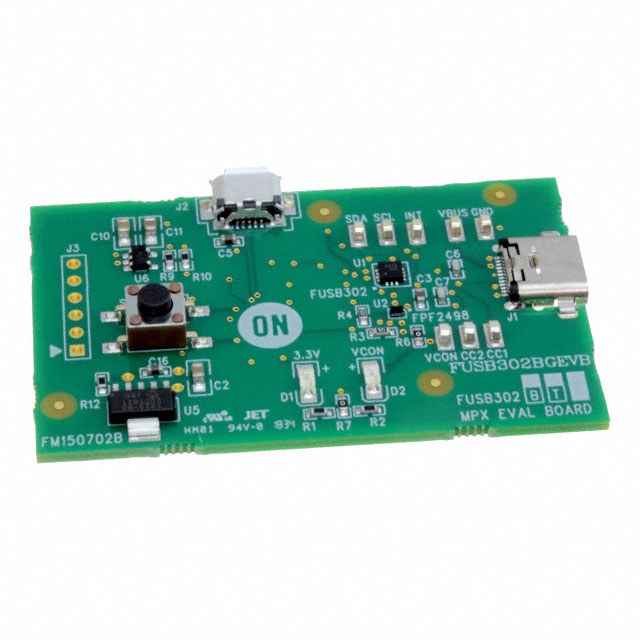

ON Semiconductor FUSB302BGEVB								USB Type-C®							Interface	FUSB302B		Board(s)
ON Semiconductor FUSB302BMPX	14-MLP (2.5x2.5)	125 °C	-40 °C	USB 3.1	25 çA		USB	Controller		USB			14-WFQFN Exposed Pad

Programmable USB Type-C Controller with PD (Default SNK)

• Dual-Role Functionality with Autonomous DRP Toggle

• Ability to connect as either a host or a device based on what has been attached.

• Software configurable either as a dedicated host, dedicated device, or dual role.

• Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.

• Full Type-C 1.2 Support. Integrates the following functionality of the CC pin

• Attach/Detach Detection as Host

• Current Capability Indication as Host

• Current Capability Detection as Device

• Audio Adapter Accessory Mode

• Debug Accessory Mode

• Active Cable Detection

• Integrates CCx to VCONN switch with over-current limiting for powering USB3.1 Full Featured cables.

• USB Power Delivery (PD) 2.0, Version 1.1 Support

• Automatic GoodCRC Packet Response

• Automatic soft reset packet sent with retries if needed

• Automatic retries of sending a packet if a GoodCRC is not received

• Dead Battery Support (SNK Mode Support when No Power Applied)

• Automatic Hard Reset Ordered Set Sent

• Low Power Operation: ICC= 25 µA (Typical)
