TPS54260-EP Series

Automotive 3.5V to 60V, 2.5A Step-down Converter with Eco-Mode™

Catalog

Automotive 3.5V to 60V, 2.5A Step-down Converter with Eco-Mode™

Part	Board Type	Utilized IC / Part	Frequency - Switching	Voltage - Output	Supplied Contents	Main Purpose	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Outputs and Type	Outputs and Type	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Input (Max) [Max]	Topology	Package / Case	Package / Case	Supplier Device Package	Voltage - Input (Min) [Min]	Function	Output Configuration	Number of Outputs	Output Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Qualification	Grade

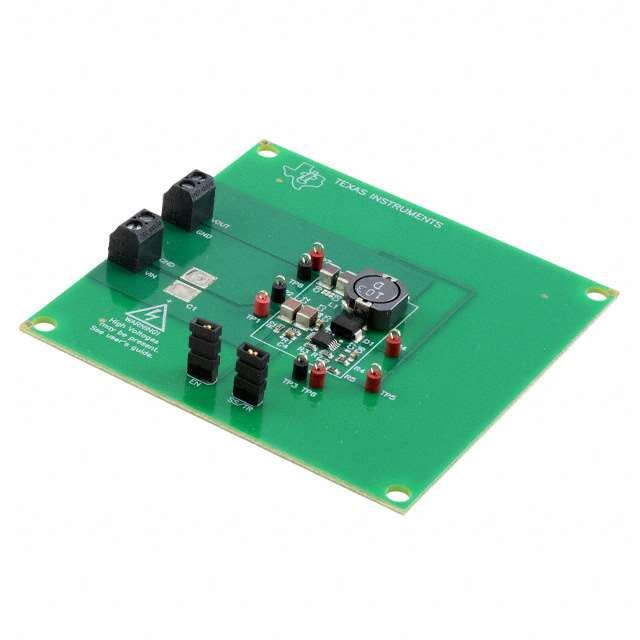

Texas Instruments TPS54260EVM-597	Fully Populated	TPS54260	300 kHz	3.3 V	Board(s)	DC/DC Step Down	Buck	10.8 V	13.2 V	2.5 A	Non-Isolated	1
Texas Instruments TPS54260DGQ										2.5 A			60 V	150 °C	-40 °C	0.8 V	Surface Mount	60 V	Buck	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	10-HVSSOP	3.5 V	Step-Down	Positive	1	Adjustable	2.5 MHz	100 kHz
Texas Instruments TPS54260QDGQRQ1										2.5 A			60 V	125 °C	-40 °C	0.8 V	Surface Mount	60 V	Buck	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	10-HVSSOP	3.5 V	Step-Down	Positive	1	Adjustable	2.5 MHz	100 kHz	AEC-Q100	Automotive
Texas Instruments TPS54260QDRCRQ1										2.5 A			60 V	125 °C	-40 °C	0.8 V	Surface Mount	60 V	Buck	10-VFDFN Exposed Pad		10-VSON (3x3)	3.5 V	Step-Down	Positive	1	Adjustable	2.5 MHz	100 kHz	AEC-Q100	Automotive
Texas Instruments TPS54260MDRCTEP										2.5 A			60 V	150 °C	-40 °C	0.8 V	Surface Mount	60 V	Buck	10-VFDFN Exposed Pad		10-VSON (3x3)	3.5 V	Step-Down	Positive	1	Adjustable	2.5 MHz	100 kHz
Texas Instruments TPS54260DRCR										2.5 A			60 V	150 °C	-40 °C	0.8 V	Surface Mount	60 V	Buck	10-VFDFN Exposed Pad		10-VSON (3x3)	3.5 V	Step-Down	Positive	1	Adjustable	2.5 MHz	100 kHz
Texas Instruments TPS54260DGQR										2.5 A			60 V	150 °C	-40 °C	0.8 V	Surface Mount	60 V	Buck	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	10-HVSSOP	3.5 V	Step-Down	Positive	1	Adjustable	2.5 MHz	100 kHz
Texas Instruments TPS54260DRCT										2.5 A			60 V	150 °C	-40 °C	0.8 V	Surface Mount	60 V	Buck	10-VFDFN Exposed Pad		10-VSON (3x3)	3.5 V	Step-Down	Positive	1	Adjustable	2.5 MHz	100 kHz

Catalog

Automotive 3.5V to 60V, 2.5A Step-down Converter with Eco-Mode™

Key Features

• 3.5-V to 60-V Input Voltage Range200-mΩ High-Side MOSFETHigh-Efficiency at Light Loads With a Pulse Skipping Eco-mode™ Control Scheme138-µA Operating Quiescent Current1.3-µA Shutdown Current100-kHz to 2.5-MHz Switching FrequencySynchronizes to External ClockAdjustable Slow-Start and SequencingUV and OV Power Good OutputAdjustable UVLO Voltage and Hysteresis0.8-V Internal Voltage Reference10-Pin HVSSOP and 10-Pin 3-mm × 3-mm VSON PackagesSupported by WEBENCH®Software ToolSupports Defense, Aerospace, and Medical ApplicationsControlled BaselineOne Assembly and Test SiteOne Fabrication SiteAvailable in Military (–55°C to 125°C) Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct Traceability3.5-V to 60-V Input Voltage Range200-mΩ High-Side MOSFETHigh-Efficiency at Light Loads With a Pulse Skipping Eco-mode™ Control Scheme138-µA Operating Quiescent Current1.3-µA Shutdown Current100-kHz to 2.5-MHz Switching FrequencySynchronizes to External ClockAdjustable Slow-Start and SequencingUV and OV Power Good OutputAdjustable UVLO Voltage and Hysteresis0.8-V Internal Voltage Reference10-Pin HVSSOP and 10-Pin 3-mm × 3-mm VSON PackagesSupported by WEBENCH®Software ToolSupports Defense, Aerospace, and Medical ApplicationsControlled BaselineOne Assembly and Test SiteOne Fabrication SiteAvailable in Military (–55°C to 125°C) Temperature RangeExtended Product Life CycleExtended Product-Change NotificationProduct Traceability

Description

The TPS54260 device is a 60-V, 2.5-A, step-down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low-ripple, pulse skip mode reduces the no load, regulated output supply current to 138 µA. Using the enable pin, shutdown supply current is reduced to1.3 µA, when the enable pin is low. Undervoltage lockout (UVLO) is internally set at2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow-start pin that can also be configured for sequencing and tracking. An open-drain powergood signal indicates the output is within 94% to 107% of its nominal voltage. A wide switching frequency range allows efficiency and external component size to be optimized. Frequency foldback and thermal shutdown protects the part during an overload condition. The TPS54260 is available in 10-pin thermally enhanced MSOP and 10-pin 3-mm × 3-mm SON PowerPAD packages. The TPS54260 device is a 60-V, 2.5-A, step-down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low-ripple, pulse skip mode reduces the no load, regulated output supply current to 138 µA. Using the enable pin, shutdown supply current is reduced to1.3 µA, when the enable pin is low. Undervoltage lockout (UVLO) is internally set at2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow-start pin that can also be configured for sequencing and tracking. An open-drain powergood signal indicates the output is within 94% to 107% of its nominal voltage. A wide switching frequency range allows efficiency and external component size to be optimized. Frequency foldback and thermal shutdown protects the part during an overload condition. The TPS54260 is available in 10-pin thermally enhanced MSOP and 10-pin 3-mm × 3-mm SON PowerPAD packages.
