1437535 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN IC DIP SOCKET 8POS TIN
| Part | Termination Post Length | Termination Post Length | Contact Resistance | Contact Finish - Post | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Contact Material - Mating | Type | Type | Type | Mounting Type | Contact Material - Post [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Material - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 10 mOhm | Tin | 0.1 in | 2.54 mm | 8 | 2 | 4 | Beryllium Copper | 7.62 mm | 0.3 in | DIP | Through Hole | Brass | -55 C | 105 ░C | Closed Frame | Solder | 0.1 " | 2.54 mm | ||||||||
TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | Tin-Lead | 0.1 in | 2.54 mm | 14 | Beryllium Copper | SIP | Through Hole | -55 C | 125 °C | Closed Frame | Solder | 0.1 " | 2.54 mm | UL94 V-0 | Beryllium Copper | 0.25 µm | 10 µin | 10 Áin | 0.25 çm | Gold | Polyester | ||||||

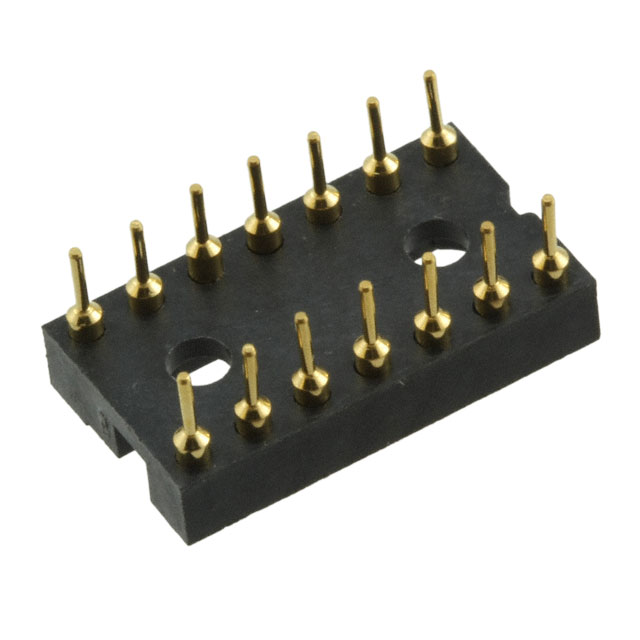

 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 10 mOhm | Gold | 0.1 in | 2.54 mm | 14 | Beryllium Copper | 7.62 mm | 0.3 in | DIP | Through Hole | Copper Alloy | -55 C | 125 °C | Closed Frame | Solder | 0.1 " | 2.54 mm | UL94 V-0 | 25 µin | 0.63 µm | Gold | ||||||
TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 10 mOhm | Gold | 0.1 in | 2.54 mm | 14 | Beryllium Copper | 7.62 mm | 0.3 in | DIP | Through Hole | -55 C | 125 °C | Closed Frame | Solder | 0.1 " | 2.54 mm | Beryllium Copper | 25 µin | 0.63 µm | Gold | |||||||

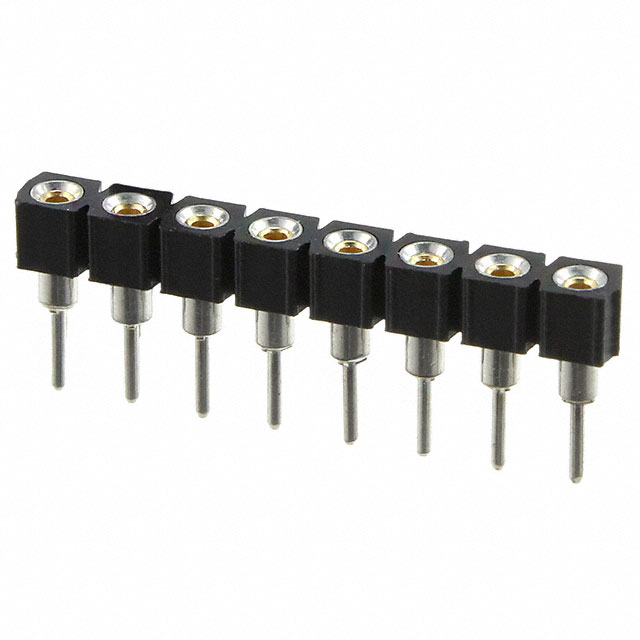

 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | Gold | 0.1 in | 2.54 mm | 8 | 1 | 8 | Beryllium Copper | SIP | Through Hole | Closed Frame | Solder | 0.1 " | 2.54 mm | UL94 V-0 | Beryllium Copper | 0.25 µm | 10 µin | 10 Áin | 0.25 çm | Gold | Thermoplastic | ||||||
TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | Gold | 0.1 in | 2.54 mm | 20 | Beryllium Copper | SIP | Through Hole | Closed Frame | Solder | 0.1 " | 2.54 mm | UL94 V-0 | Beryllium Copper | 0.25 µm | 10 µin | 10 Áin | 0.25 çm | Gold |
