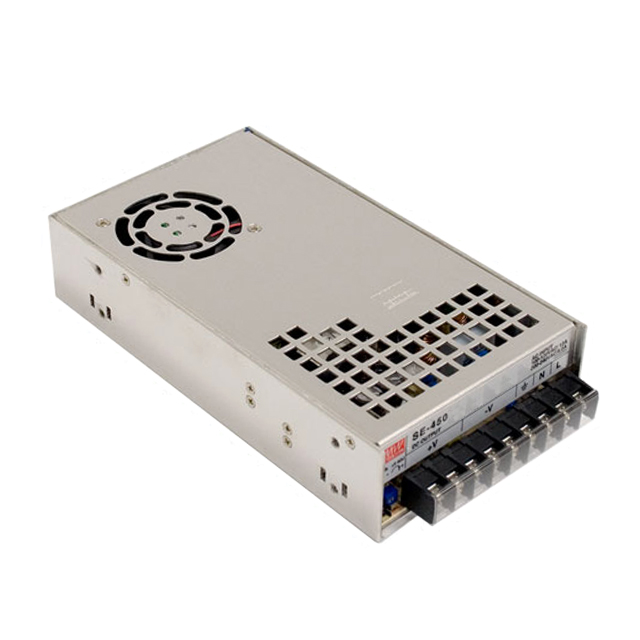

SE-450 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 450W
| Part | Minimum Load Required | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Voltage - Output 1 | Efficiency | Number of Outputs | Type | Applications | Features | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 3000 V | 90 VAC 180 VAC 254 VDC | 132 VAC 264 VAC 370 VDC | 50 mm | 124 mm | 225 mm | 1.97 " | 4.88 in | 8.86 " | Chassis Mount | 12 V | 83 % | 1 | Enclosed | ITE (Commercial) | Adjustable Output Remote Sense | -10 °C | 60 °C | 37.5 A | 450 W | |
MEAN WELL USA Inc. | 3000 V | 90 VAC 180 VAC 254 VDC | 132 VAC 264 VAC 370 VDC | 50 mm | 124 mm | 225 mm | 1.97 " | 4.88 in | 8.86 " | Chassis Mount | 3.3 V | 74 % | 1 | Enclosed | ITE (Commercial) | Adjustable Output Remote Sense | -10 °C | 60 °C | 75 A | 248 W | |
MEAN WELL USA Inc. | 3000 V | 90 VAC 180 VAC 254 VDC | 132 VAC 264 VAC 370 VDC | 50 mm | 124 mm | 225 mm | 1.97 " | 4.88 in | 8.86 " | Chassis Mount | 24 V | 86 % | 1 | Enclosed | ITE (Commercial) | Adjustable Output Remote Sense | -10 °C | 60 °C | 18.8 A | 451 W | |
MEAN WELL USA Inc. | 3000 V | 90 VAC 180 VAC 254 VDC | 132 VAC 264 VAC 370 VDC | 50 mm | 124 mm | 225 mm | 1.97 " | 4.88 in | 8.86 " | Chassis Mount | 48 V | 88 % | 1 | Enclosed | ITE (Commercial) | Adjustable Output Remote Sense | -10 °C | 60 °C | 9.4 A | 451 W |
