1825190 Series

Catalog

SWITCH SHUNT DIP PROGRAMMABLE

Part	Number of Positions	Mounting Type	Circuit	Actuator Level	Actuator Type	Pitch [x]	Pitch	Pitch [x]	Body Material	Contact Material	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination Style	Height Above Board	Height Above Board

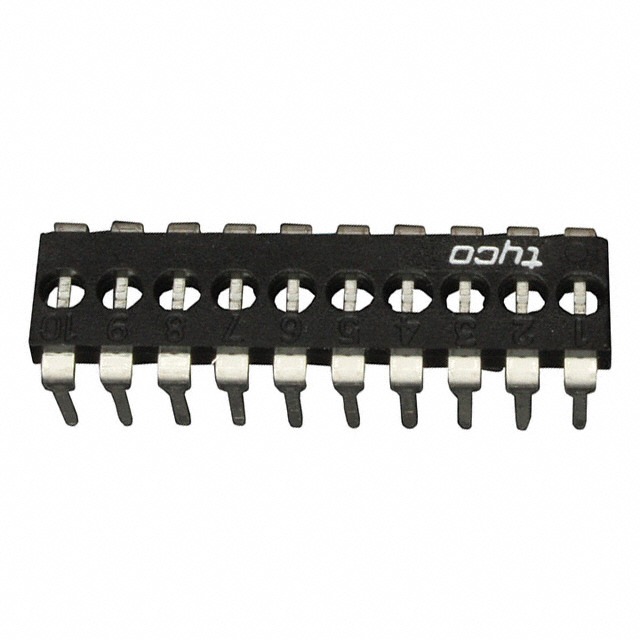

TE Connectivity Raychem Cable Protection 1825190-9	10	Through Hole	Programmable	Flush Recessed	Breakable (Shunt)

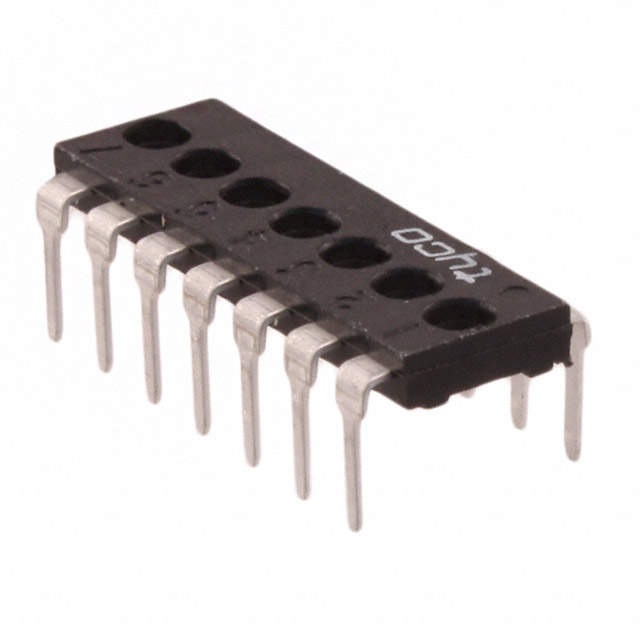

TE Connectivity Raychem Cable Protection 1825190-6	7	Through Hole	Programmable	Flush Recessed	Breakable (Shunt)	0.1 in	Full	2.54 mm	Thermoplastic	Copper Alloy	17.78 mm	0.7 in	105 ░C	-55 °C	Tin	PC Pin	0.079 in	2 mm

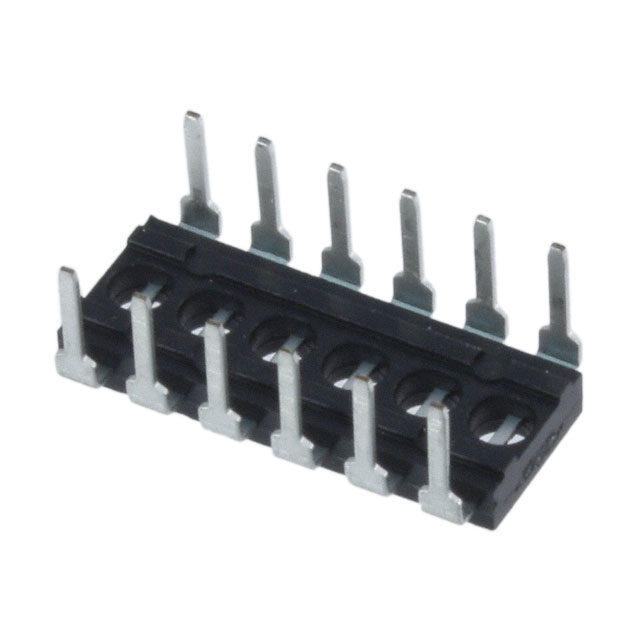

TE Connectivity Raychem Cable Protection 1825190-5	6	Through Hole	Programmable	Flush Recessed	Breakable (Shunt)	0.1 in	Full	2.54 mm	Thermoplastic	Copper Alloy	15.24 mm	0.6 in	105 ░C	-55 °C	Tin	PC Pin	0.079 in	2 mm

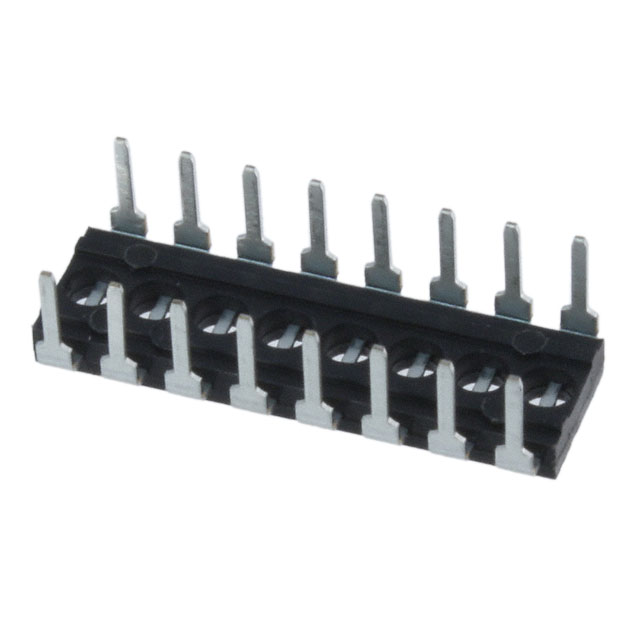

TE Connectivity Raychem Cable Protection 1825190-7	8	Through Hole	Programmable	Flush Recessed	Breakable (Shunt)	0.1 in	Full	2.54 mm	Thermoplastic	Copper Alloy	20.32 mm	0.8 in	105 ░C	-55 °C	Tin	PC Pin	0.079 in	2 mm
