317-031 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 62POS 0.156

Part	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Color	Contact Finish	Pitch	Pitch	Number of Positions	Number of Rows [custom]	Contact Material	Mounting Type	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Gender	Termination	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Features

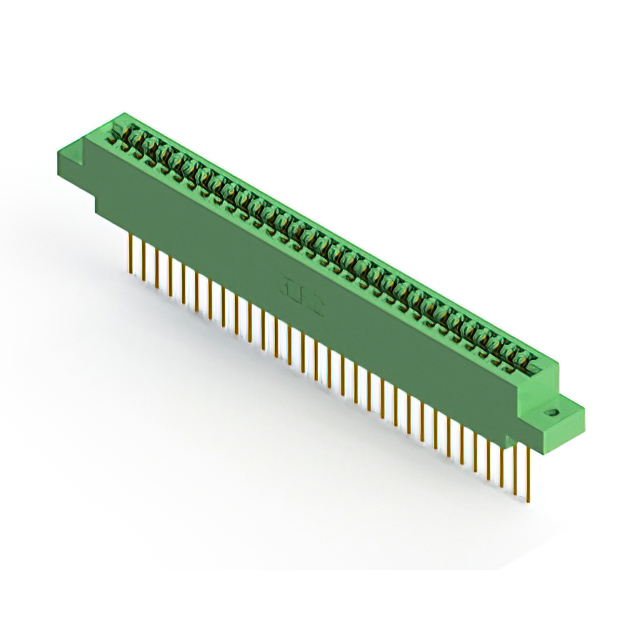

EDAC Inc. 317-031-541-602	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Single	Green	Gold	3.96 mm	0.156 in	62	2	Copper Alloy	Through Hole	31	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Wire Wrap	Cantilever
EDAC Inc. 317-031-541-604	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Single	Green	Gold	3.96 mm	0.156 in	62	2	Copper Alloy	Through Hole	31	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Wire Wrap	Cantilever	0.156 "	3.96 mm

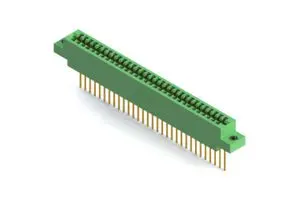

EDAC Inc. 317-031-541-678	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Single	Green	Gold	3.96 mm	0.156 in	62	2	Copper Alloy	Through Hole	31	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Wire Wrap	Cantilever			4-40 Threaded Insert Top Mount Opening	Card Guides
EDAC Inc. 317-031-541-601	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Single	Green	Gold	3.96 mm	0.156 in	62	2	Copper Alloy	Through Hole	31	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Wire Wrap	Cantilever
EDAC Inc. 317-031-541-607	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Single	Green	Gold	3.96 mm	0.156 in	62	2	Copper Alloy	Through Hole	31	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Wire Wrap	Cantilever			M3 Threaded Insert Top Mount Opening

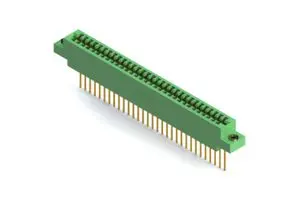

EDAC Inc. 317-031-541-603	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Single	Green	Gold	3.96 mm	0.156 in	62	2	Copper Alloy	Through Hole	31	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Wire Wrap	Cantilever	0.116 "	2.95 mm	Floating Bobbin Flush Mount
EDAC Inc. 317-031-541-608	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Single	Green	Gold	3.96 mm	0.156 in	62	2	Copper Alloy	Through Hole	31	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Wire Wrap	Cantilever			4-40 Threaded Insert Top Mount Opening
