45092 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

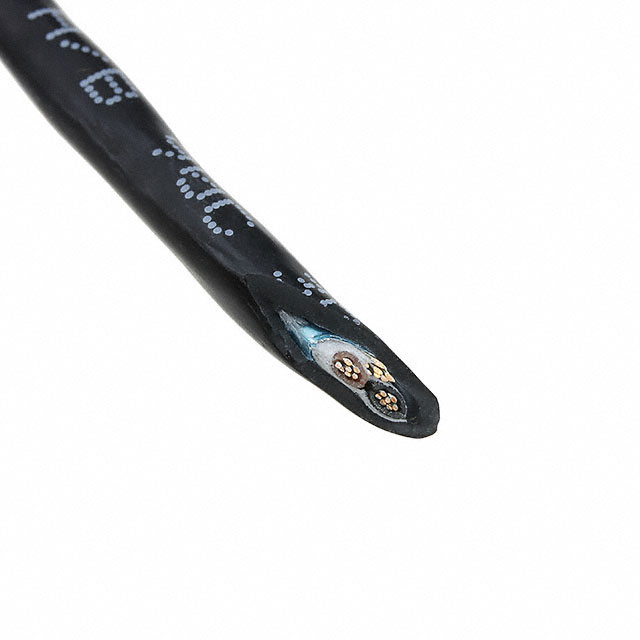

CABLE 2COND 24AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Conductor Insulation | Conductor Insulation | Ratings | Features | Number of Conductors | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Shield Type | Jacket (Insulation) Material | Conductor Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | TPE | Thermoplastic Elastomer | ISO 10993 | Biological Compatibility Drain Wire Rip Cord | 2 | Black | 5.18 mm | 0.204 " | Multi-Conductor | Foil | Thermoplastic Elastomer (TPE) | Copper Tinned | 300 VDC | 0.042 in | 1.067 mm | 304.8 m | 1000 ft | 24 AWG | 7 | 32 AWG | 125 °C | -50 °C |
