794303 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

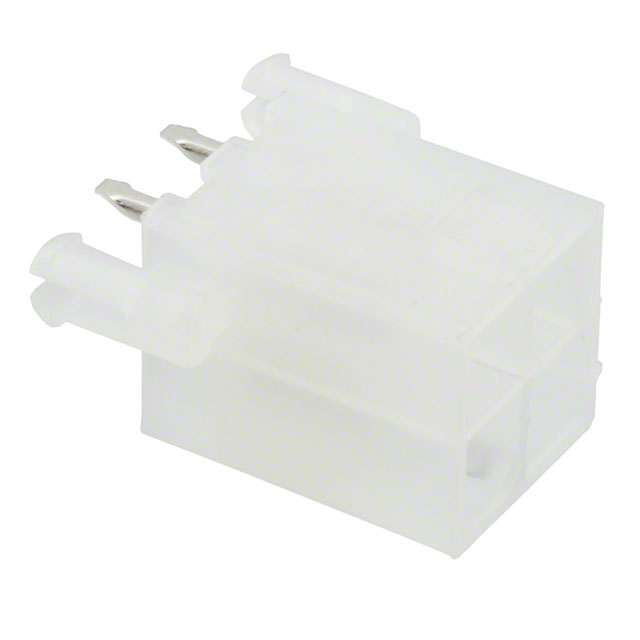

CONN HEADER VERT 4POS 4.2MM
| Part | Contact Material | Shrouding | Fastening Type | Number of Rows [custom] | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Connector Type | Number of Positions Loaded | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Features | Contact Finish - Post | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Shape | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper Alloy | Shrouded - 4 Wall | Locking Ramp | 2 | 600 VAC | 0.165 in | 4.2 mm | Male Pin | Header | All | Nylon Polyamide (PA) | 118.1 µin | 3 µm | Through Hole | Board Lock | Tin | Natural | -55 C | 105 ░C | Solder | Square | 0.138 in | 3.5 mm | 0.165 in | 4.2 mm | 12.8 mm | 0.504 " | UL94 V-2 | Board to Board Cable | 4 |
