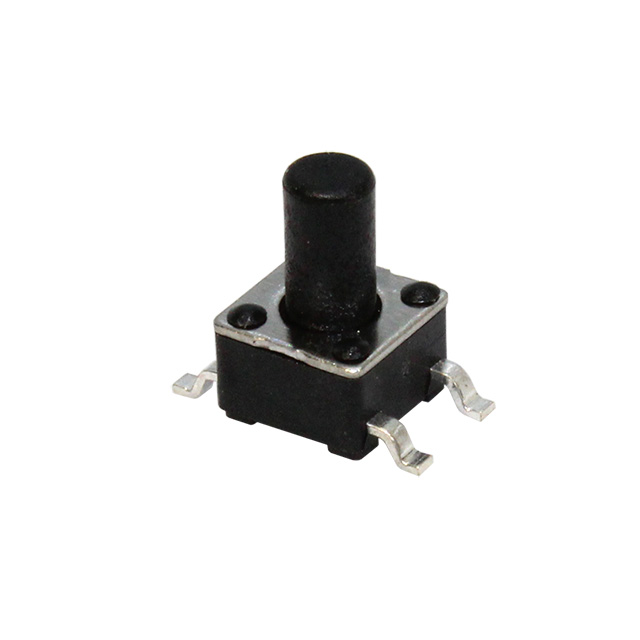

CS11047 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Contact Rating @ Voltage | Actuator Height off PCB, Vertical [z] | Illumination | Actuator Orientation | Outline [y] | Outline [x] | Termination Style | Actuator Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Mounting Type | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Polyamide (PA46) Nylon 4/6 | 0.05 A 50 VDC | 7 mm | Non-Illuminated | Top Actuated | 4.5 mm | 7.5 mm | Gull Wing | Standard | Off-Mom | 85 °C | -40 C | SPST-NO | Surface Mount | 260 gf |
