09100033 Series

Manufacturer: HARTING

Catalog

1A 3+PE FEMALE SHIELDED CRIMP IN

Part	Material Flammability Rating	Housing Material	Color	Number of Positions	Gender	Current Rating (Amps)	Termination Style	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Size	Connector Type	Contact Type

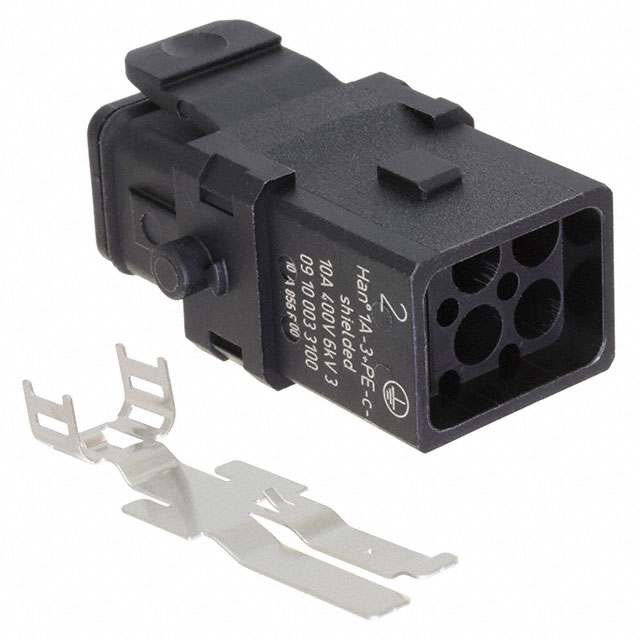

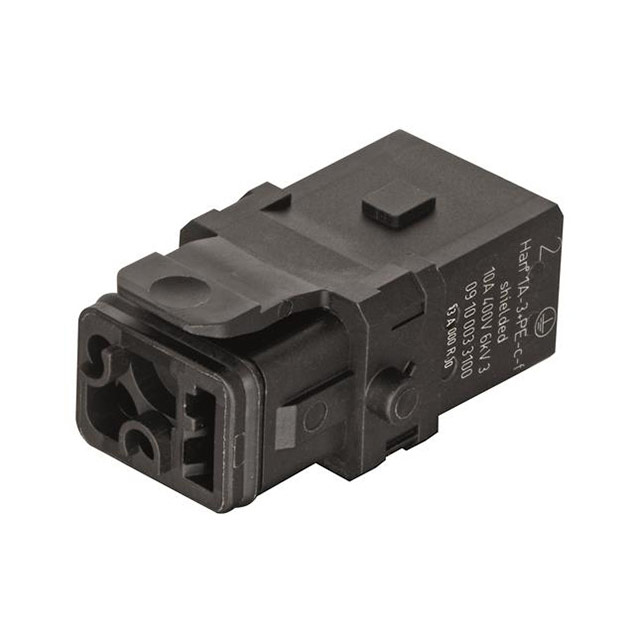

HARTING 09100033100	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Female	10 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert

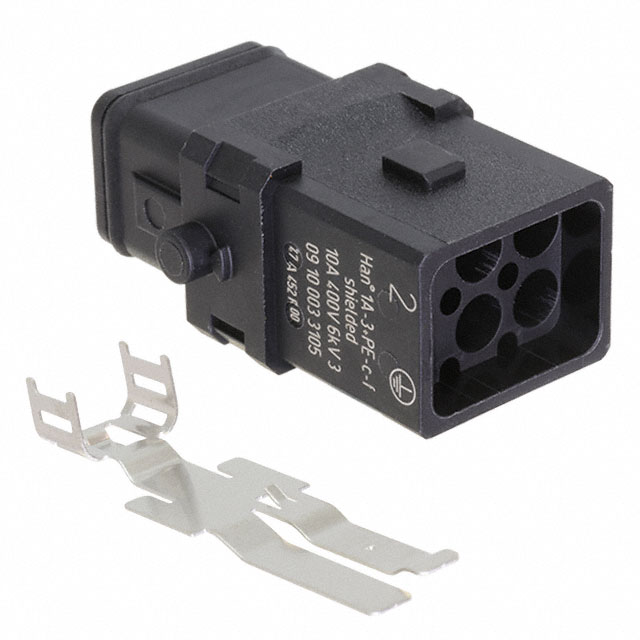

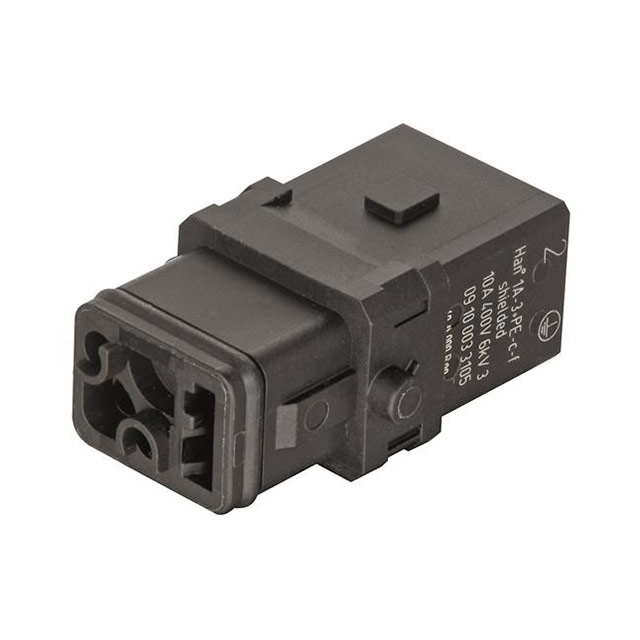

HARTING 09100033105	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Female	10 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert

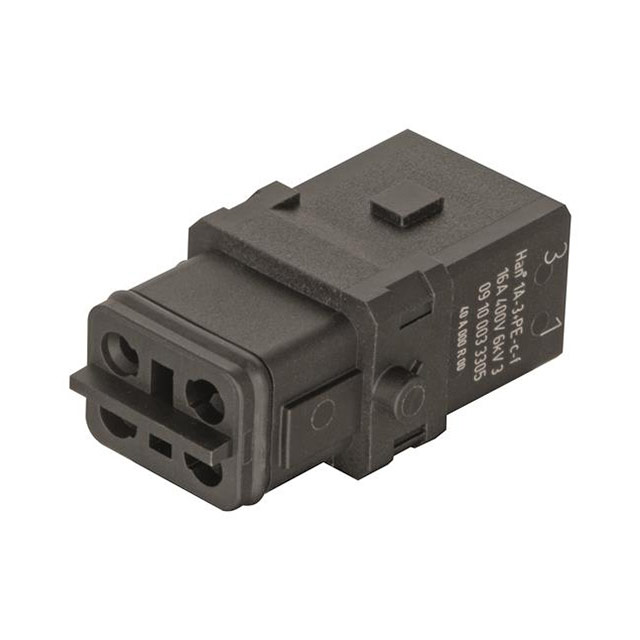

HARTING 09100033305	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Female	16 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert

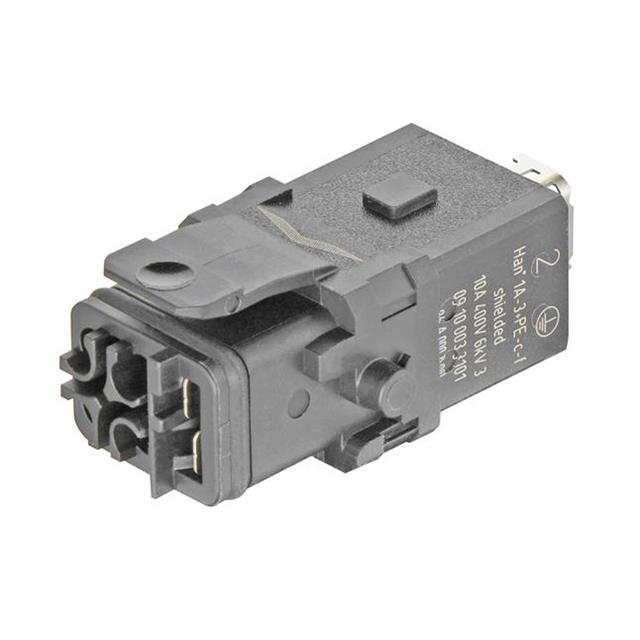

HARTING 09100033101	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Female	10 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert without Contacts	Han® D

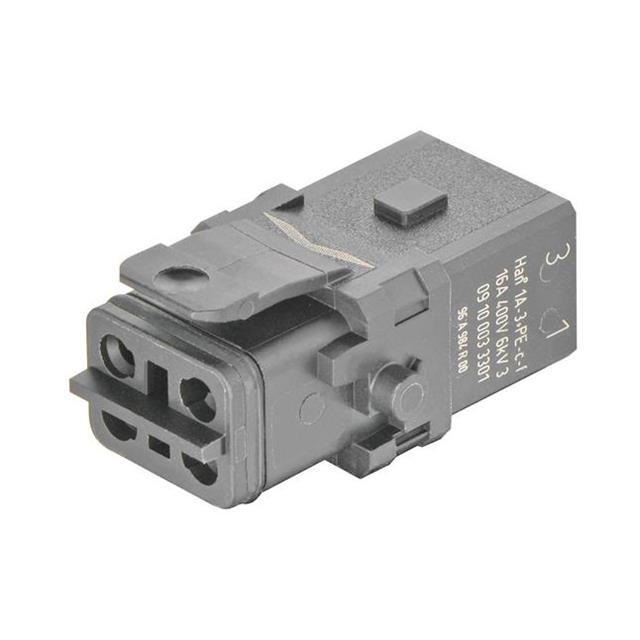

HARTING 09100033301	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Female	16 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert without Contacts	Han® D

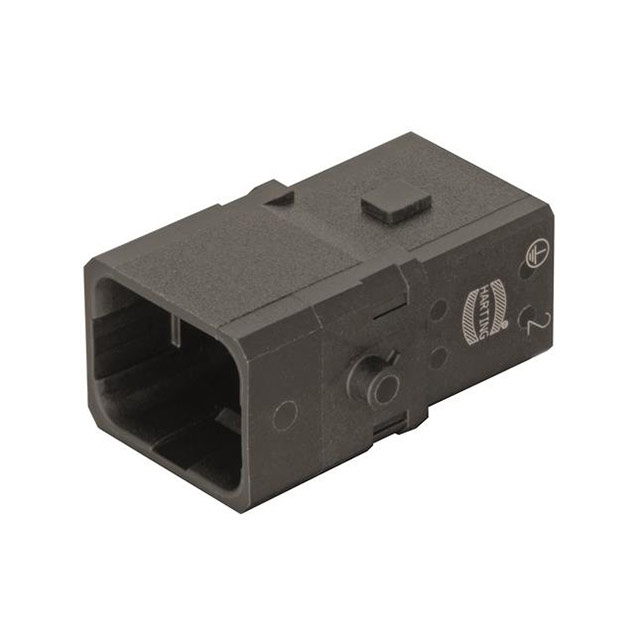

HARTING 09100033205	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Male	16 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert

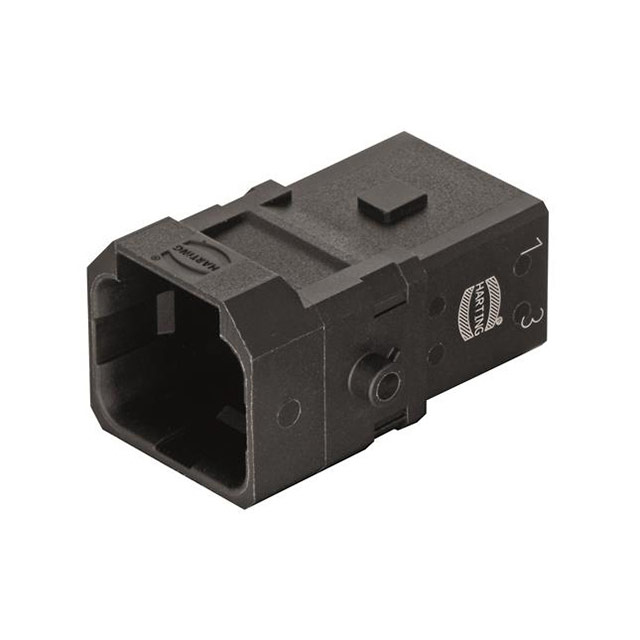

HARTING 09100033000	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Male	10 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert

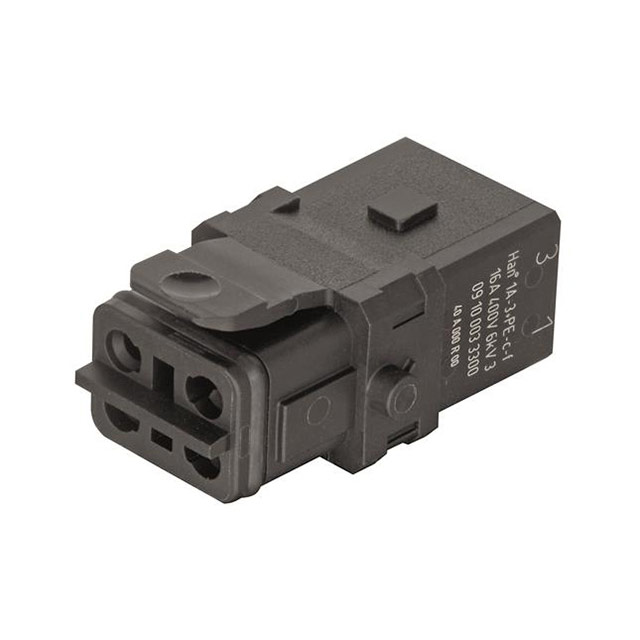

HARTING 09100033300	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Female	16 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert
HARTING 09100033206	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Male	16 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert without Contacts	Han® D

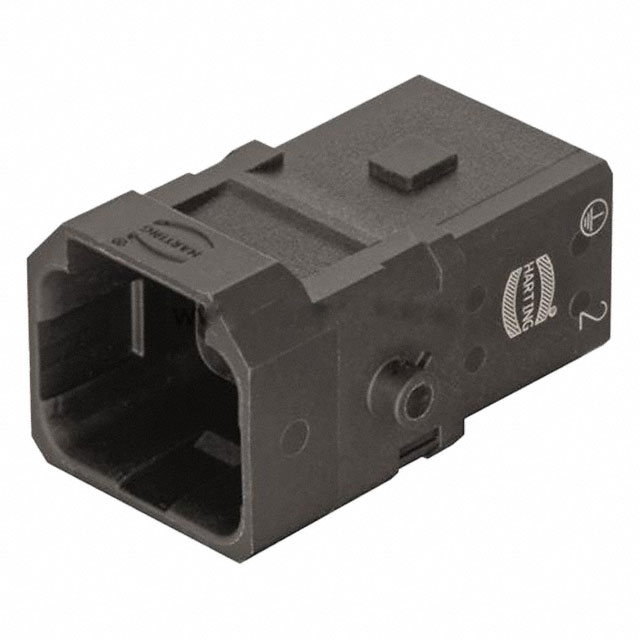

HARTING 09100033200	UL94 V-0	Polyamide (PA) Nylon	Black	3+Ground	Male	16 A	Crimp	400 V	-30 ░C	90 °C	1A	Insert
