0997-5 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

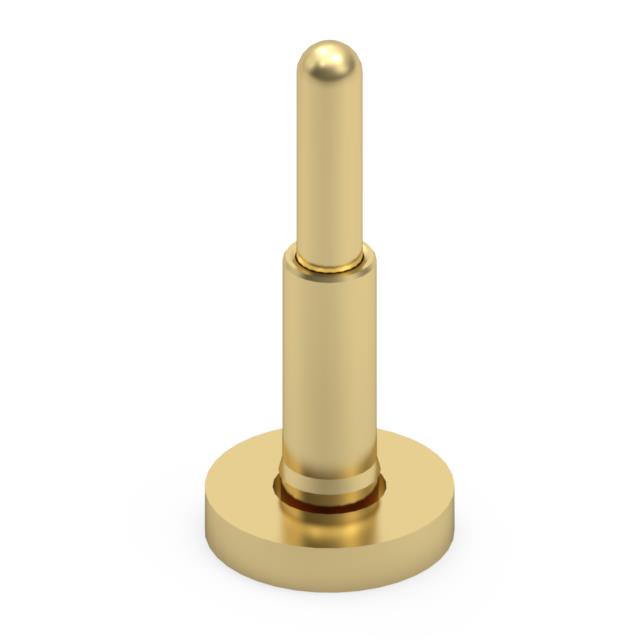

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Operating Force - Mid Compression | Mounting Type | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Operating Force - Initial | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Minimum Working Height | Minimum Working Height | Contact Material | Mating Cycles | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.159 in | 4.04 mm | 60 gf | Surface Mount | 0.322 in | 8.19 mm | 5.2 A | 10 gf | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | 0.295 in | 7.49 mm | Brass Alloy | 1000000 | 8.89 mm | 0.35 in | Gold | Sleeve & Plunger (Pogo Pins) |
