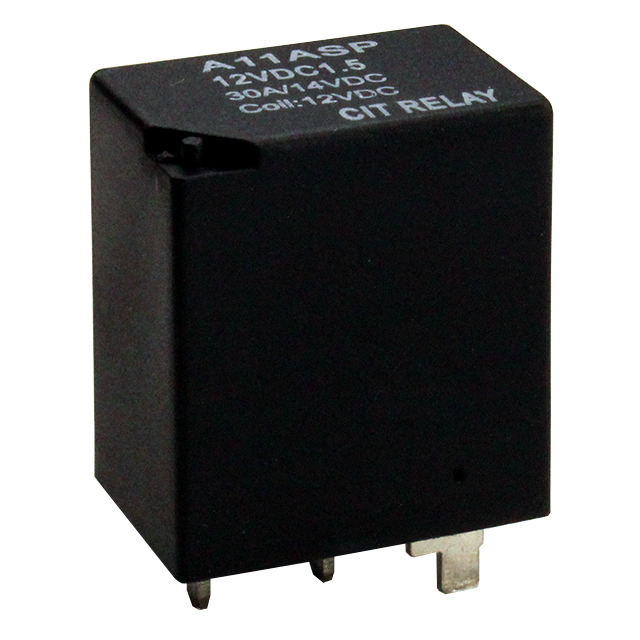

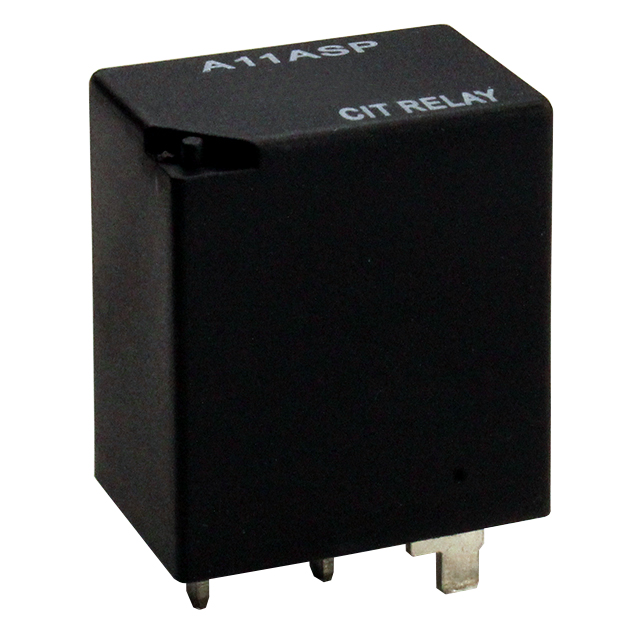

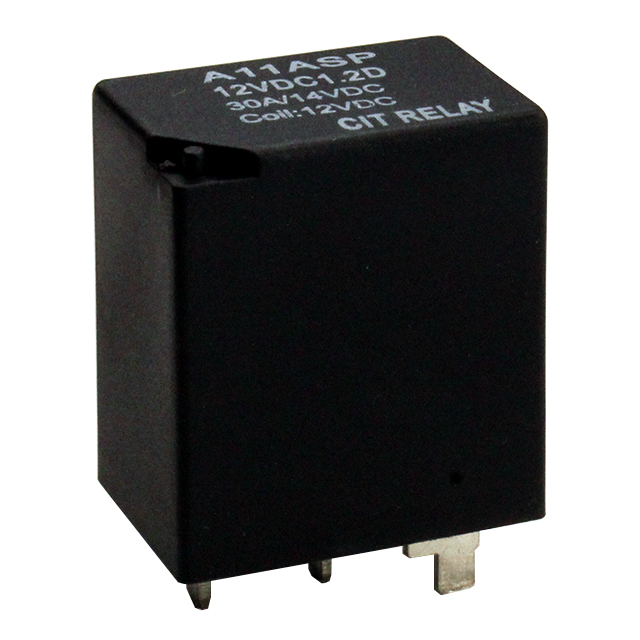

A11ASP Series
Manufacturer: CIT Relay and Switch
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY AUTOMOTIVE SPST 30A 12V
| Part | Must Release Voltage | Coil Type | Operate Time | Release Time | Switching Voltage DC (Max) | Features | Coil Current | Operating Temperature (Min) | Operating Temperature (Max) | Contact Rating (Current) | Coil Voltage | Form A Count | Contact Form | Must Operate Voltage | Termination Style | Mounting Type | Coil Resistance | Contact Material | Coil Power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 1.2 V | Non Latching | 10 ms | 7 ms | 75 VDC | Diode Fully Sealed | 100 mA | -40 °C | 85 °C | 30 A | 12 VAC | 1 | SPST-NO | 8.4 VAC | PC Pin | Through Hole | 120 Ohms | Silver Tin Oxide (AgSnO) | 1.2 W |
 CIT Relay and Switch | 2.4 V | Non Latching | 10 ms | 7 ms | 75 VDC | Fully Sealed | 62.5 mA | -40 °C | 85 °C | 30 A | 24 VDC | 1 | SPST-NO | 18 VDC | PC Pin | Through Hole | 384 Ohms | Silver Tin Oxide (AgSnO) | 1.5 W |
 CIT Relay and Switch | 2.4 V | Non Latching | 10 ms | 7 ms | 75 VDC | Fully Resistor Sealed | 62.5 mA | -40 °C | 85 °C | 30 A | 24 VDC | 1 | SPST-NO | 18 VDC | PC Pin | Through Hole | 384 Ohms | Silver Tin Oxide (AgSnO) | 1.5 W |
 CIT Relay and Switch | 2.4 V | Non Latching | 10 ms | 7 ms | 75 VDC | Diode Fully Sealed | 50 mA | -40 °C | 85 °C | 30 A | 24 VDC | 1 | SPST-NO | 18 VDC | PC Pin | Through Hole | 480 Ohms | Silver Tin Oxide (AgSnO) | 1.2 W |
 CIT Relay and Switch | 1.2 V | Non Latching | 10 ms | 7 ms | 75 VDC | Fully Sealed | 100 mA | -40 °C | 85 °C | 30 A | 12 VAC | 1 | SPST-NO | 8.4 VAC | PC Pin | Through Hole | 120 Ohms | Silver Tin Oxide (AgSnO) | 1.2 W |
 CIT Relay and Switch | 1.2 V | Non Latching | 10 ms | 7 ms | 75 VDC | Diode Fully Sealed | 125 mA | -40 °C | 85 °C | 30 A | 12 VAC | 1 | SPST-NO | 8.4 VAC | PC Pin | Through Hole | 96 Ohms | Silver Tin Oxide (AgSnO) | 1.5 W |
CIT Relay and Switch | 2.4 V | Non Latching | 10 ms | 7 ms | 75 VDC | Fully Sealed | 50 mA | -40 °C | 85 °C | 30 A | 24 VDC | 1 | SPST-NO | 18 VDC | PC Pin | Through Hole | 480 Ohms | Silver Tin Oxide (AgSnO) | 1.2 W |
CIT Relay and Switch | 2.4 V | Non Latching | 10 ms | 7 ms | 75 VDC | Diode Fully Sealed | 62.5 mA | -40 °C | 85 °C | 30 A | 24 VDC | 1 | SPST-NO | 18 VDC | PC Pin | Through Hole | 384 Ohms | Silver Tin Oxide (AgSnO) | 1.5 W |
 CIT Relay and Switch | 1.2 V | Non Latching | 10 ms | 7 ms | 75 VDC | Fully Sealed | 125 mA | -40 °C | 85 °C | 30 A | 12 VAC | 1 | SPST-NO | 8.4 VAC | PC Pin | Through Hole | 96 Ohms | Silver Tin Oxide (AgSnO) | 1.5 W |
