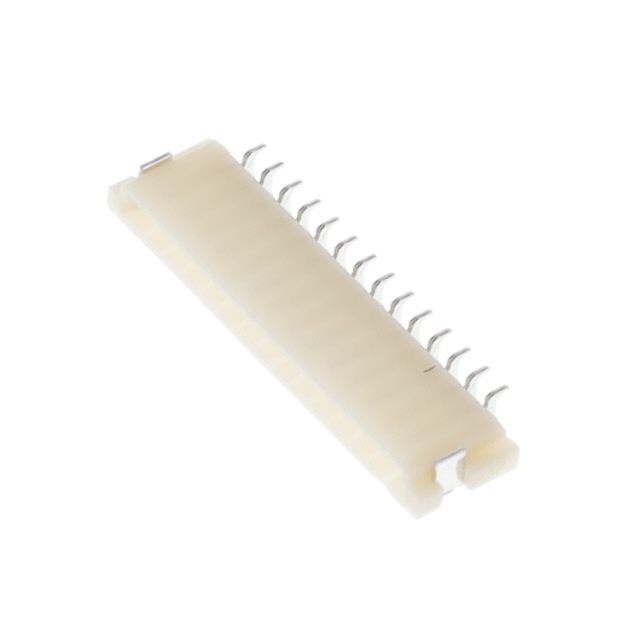

SM14B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 14POS 1MM
| Part | Shrouding | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Mounting Type | Insulation Height [z] | Insulation Height [z] | Number of Rows | Insulation Color | Number of Positions Loaded | Termination | Voltage Rating | Insulation Material | Contact Type | Connector Type | Contact Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Features | Fastening Type | Style | Contact Shape | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | 1 mm | 0.039 in | Tin | Right Angle Surface Mount | 0.069 in | 1.75 mm | 1 | Natural | All | Solder | 50 V | Nylon Polyamide (PA) | Outer Shroud Contact | Header | Phosphor Bronze | UL94 V-0 | 85 °C | -25 °C | Solder Retention | Push-Pull | Board to Cable/Wire | Rectangular | 14 |
