W4E400 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

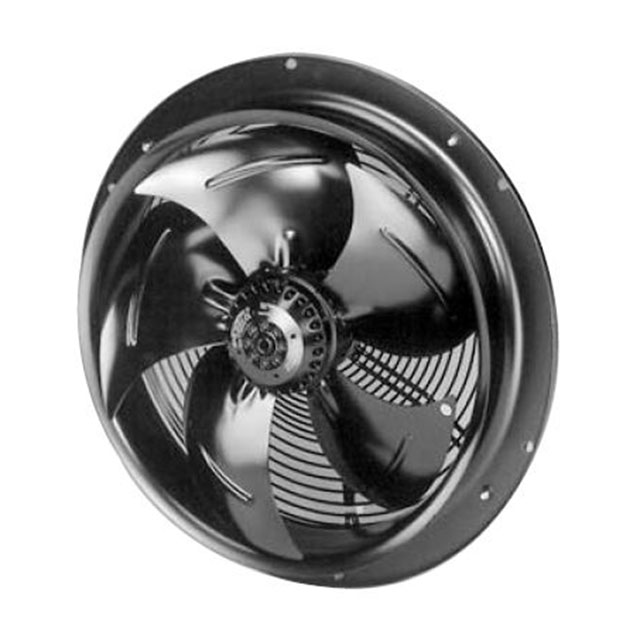

AC FANS AXIAL FAN, 400MM, 115VAC, 2910CFM, 240W, 73DB, BALL, LEAD WIRES, GRILL: INLET
| Part | Material - Blade | Material - Frame | Fan Type | Size / Dimension [diameter] | Air Flow | Air Flow | Power (Watts) | Bearing Type | Voltage - Rated | Weight | Weight | Noise | Approval Agency | Width [y] | Termination | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Metal | Metal | Tubeaxial | 528 mm | 81.48 m³/min | 2910 CFM | 240 Watts | Ball | 115 VAC | 9.3 lbs | 4.2 kg | 73 dB(A) | CE CSA UL | 80 mm | 2 Wire Leads | |||||
ebm-papst Inc. | Metal | Metal | Tubeaxial | 528 mm | 81.48 m³/min | 2910 CFM | 240 Watts | Ball | 230 VAC | 9.3 lbs | 4.2 kg | 73 dB(A) | CE CSA UL | 80 mm | 2 Wire Leads | |||||
ebm-papst Inc. | Metal | Metal | Tubeaxial | 528 mm | 81.48 m³/min | 2910 CFM | 240 Watts | Ball | 230 VAC | 9.3 lbs | 4.2 kg | 73 dB(A) | CSA UL VDE | 80 mm | 2 Wire Leads 4 Wire Leads | |||||
ebm-papst Inc. | Steel | Steel | Tubeaxial | 528 mm | 81.48 m³/min | 2910 CFM | 250 W | Ball | 115 VAC | 18 lbs | 8.2 kg | 73 dB(A) | CSA UL | 80 mm | 2 Wire Leads | IP44 | 80 °C | -40 C | 75 Pa | 0.301 in H2O |
