LA6500 Series

Catalog

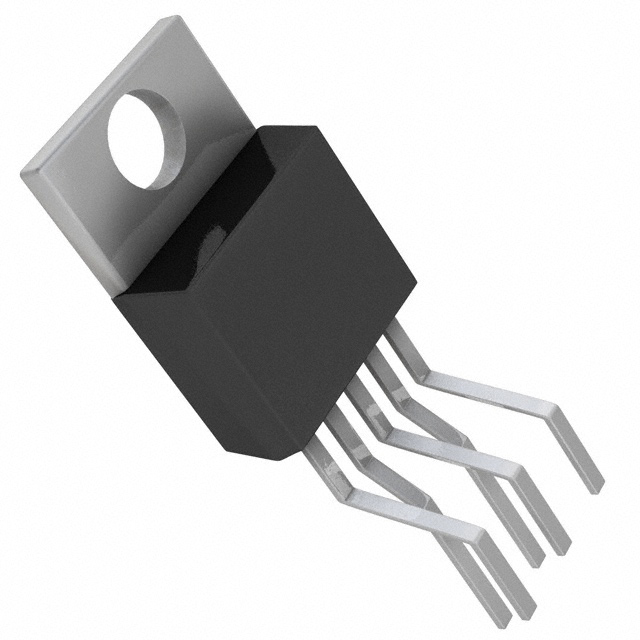

OP AMP SINGLE POWER AMPLIFIER ±18V 5-PIN(5+TAB) TO-220-H

Part	Voltage - Supply Span (Min) [Min]	Amplifier Type	Current - Output / Channel	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Package / Case	Supplier Device Package	Current - Supply	Number of Circuits	Slew Rate	Current - Input Bias	Mounting Type
ON Semiconductor LA6500LL-E	30 V	Power	1 A	2 mV	30 V	TO-220-5 Formed Leads	TO-220-5H	6 mA	1	0.15 V/µs	100 nA	Through Hole
ON Semiconductor LA6500-MDB-E	30 V	Power	1 A	2 mV	30 V	TO-220-5 Formed Leads	TO-220-5H	6 mA	1	0.15 V/µs	100 nA	Through Hole
ON Semiconductor LA6500L-FA-E	30 V	Power	1 A	2 mV	30 V	TO-220-5 Formed Leads	TO-220-5H	6 mA	1	0.15 V/µs	100 nA	Through Hole
ON Semiconductor LA6500-E	10 V	Power	1 A	2 mV	30 V	TO-220-5 Formed Leads	TO-220-5H	6 mA	1	0.15 V/µs	100 nA	Through Hole
