ECQ-E6684 Series

Catalog

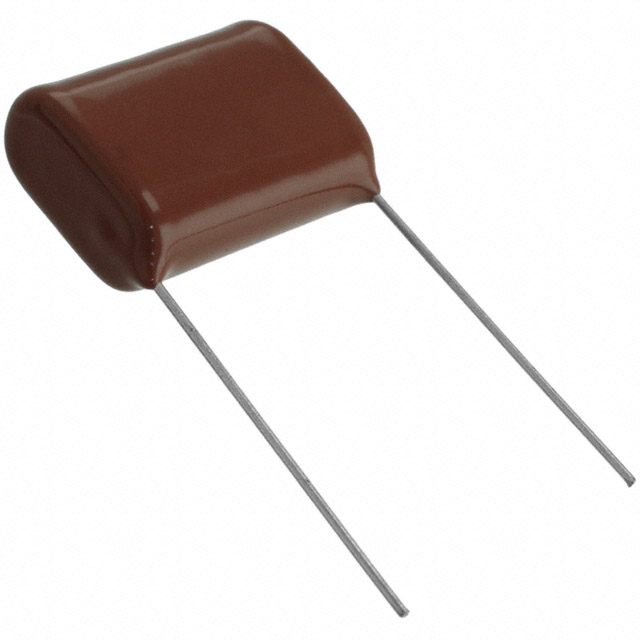

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PET, RADIAL BOX - 2 PIN, 0.68 ΜF, ± 10%, 250 V, 630 V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Capacitance	Mounting Type	Applications	Dielectric Material	Tolerance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECQ-E6684KF	22 mm	0.866 in	26 mm	11.5 mm	0.453 in	1.024 in	PC Pins	-40 °C	105 ░C	22.5 mm	0.886 in	680 nF	Through Hole	General Purpose	Polyester Metallized	10 %	Radial
Panasonic Industrial Automation Sales ECQ-E6684KFW	26 mm	1.024 in	26 mm	11.5 mm	0.453 in	1.024 in	PC Pins	-40 °C	105 ░C	15 mm	0.591 in	680 nF	Through Hole	General Purpose	Polyester Metallized	10 %	Radial
Panasonic Industrial Automation Sales ECQ-E6684KFB	26 mm	1.024 in	26 mm	11.5 mm	0.453 in	1.024 in	PC Pins	-40 °C	105 ░C	15 mm	0.591 in	680 nF	Through Hole	General Purpose	Polyester Metallized	10 %	Radial
Panasonic Industrial Automation Sales ECQ-E6684KZ			42.5 mm	12 mm	0.472 "	1.673 in	PC Pins	-40 °C	85 °C	38.5 mm	1.516 in	680 nF	Through Hole	General Purpose	Polyester Metallized	10 %	Radial	0.807 "	20.5 mm
Panasonic Industrial Automation Sales ECQ-E6684JFB	26 mm	1.024 in	26 mm	11.5 mm	0.453 in	1.024 in	PC Pins	-40 °C	105 ░C	15 mm	0.591 in	680 nF	Through Hole	General Purpose	Polyester Metallized	5 %	Radial
Panasonic Industrial Automation Sales ECQ-E6684JFW	26 mm	1.024 in	26 mm	11.5 mm	0.453 in	1.024 in	PC Pins	-40 °C	105 ░C	15 mm	0.591 in	680 nF	Through Hole	General Purpose	Polyester Metallized	5 %	Radial
