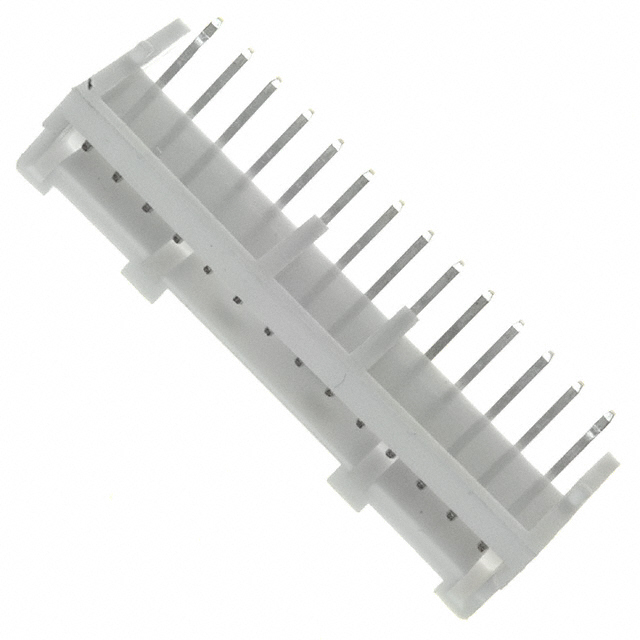

S14B-PAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 14POS 2MM
| Part | Shrouding | Contact Type | Insulation Material | Insulation Color | Style | Number of Rows | Termination | Material Flammability Rating | Number of Positions Loaded | Number of Positions | Features | Contact Finish - Post | Fastening Type | Voltage Rating | Contact Material | Contact Shape | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Mating | Contact Length - Mating | Mounting Type | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | Natural | Board to Cable/Wire | 1 | Kinked Pin Solder | UL94 V-0 | All | 14 | Board Guide | Tin | Locking Ramp | 250 V | Copper Alloy | Square | 0.256 in | 6.5 mm | 0.079 " | 2 mm | 85 °C | -25 °C | 0.126 in | 3.2 mm | Right Angle Through Hole | 3 A | 0.134 " | 3.4 mm | Header |
